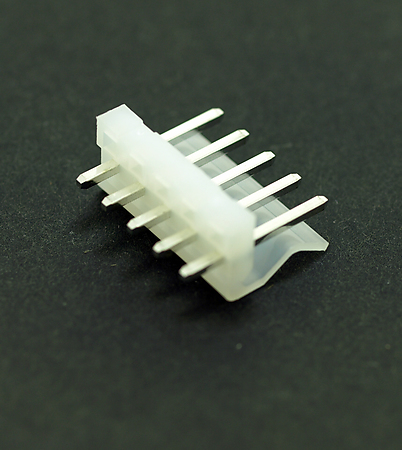

WH396 Straight HDR WEB PIC 1

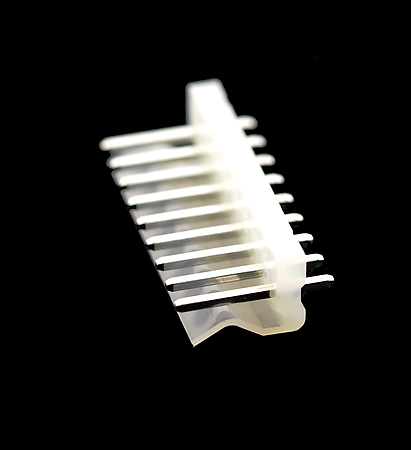

WH396 Straight HDR WEB PIC 1

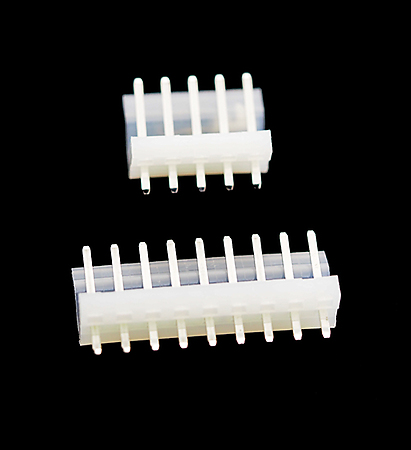

WH396 Straight HDR WEB PIC 2

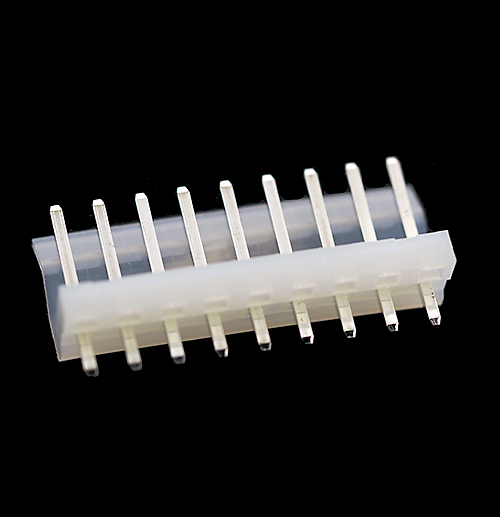

WH396 Straight HDR WEB PIC 3
WH-396-xxS-010 pic

WH396 - Valcon 3.96mm 5A Wire-to-Board Straight Locking Power Connector (WH39S)

From: £0.04
Copied to clipboard
  • 3.96mm pitch single row through hole PCB footprint
  • 5Amp vertical PCB mount locking header
  • Righ angle version available WH396-xxR-010
  • Mates with loaded WH396 series housings
  • MOQ & multiples may apply
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
WH396-02S-010
7946 in stock £0.07£0.06£0.05£0.04
When ordering more than in stock, please contact us to confirm delivery time.
WH396-03S-010
13044 in stock £0.09£0.07£0.06£0.05
When ordering more than in stock, please contact us to confirm delivery time.
WH396-04S-010
4324 in stock £0.10£0.09£0.06£0.06
When ordering more than in stock, please contact us to confirm delivery time.
WH396-05S-010
2146 in stock £0.12£0.10£0.09£0.07
When ordering more than in stock, please contact us to confirm delivery time.
WH396-06S-010
1934 in stock £0.16£0.13£0.10£0.09
When ordering more than in stock, please contact us to confirm delivery time.
WH396-07S-010
1686 in stock £0.20£0.16£0.14£0.11
When ordering more than in stock, please contact us to confirm delivery time.
WH396-08S-010
583 in stock £0.21£0.17£0.14£0.11
When ordering more than in stock, please contact us to confirm delivery time.
WH396-09S-010
2734 in stock £0.23£0.20£0.16£0.13
When ordering more than in stock, please contact us to confirm delivery time.
WH396-10S-010
1250 in stock £0.27£0.23£0.19£0.15
When ordering more than in stock, please contact us to confirm delivery time.
WH396-12S-010
1999 in stock £0.31£0.26£0.21£0.17
When ordering more than in stock, please contact us to confirm delivery time.
WH396-15S-010
500 in stock £0.41£0.35£0.27£0.23
When ordering more than in stock, please contact us to confirm delivery time.
WH396-16S-010
950 in stock £0.47£0.38£0.31£0.26
When ordering more than in stock, please contact us to confirm delivery time.
WH396-17S-010
18 in stock £0.23£0.23£0.23£0.21
When ordering more than in stock, please contact us to confirm delivery time.
WH396-18S-010
282 in stock £0.43£0.35£0.30£0.25
When ordering more than in stock, please contact us to confirm delivery time.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Insulator Material: Clear Nylon 66 UL94V-2

Contact Material: Brass

Contact Plating: Tin

Pin Type: 1.14mm (0.045”) square pin

Current Rating: 5 Amps

Rated Voltage: 250V AC/DC

DWV: 1500V AC for 1 minute

Insulation Resistance: 1000 MΩ min.

Operating Temperature: -25°C to +85°C

Tolerance: ±0.35mm

RoHS compliant

Valcon WH396 series vertical (straight) PCB mount headers, mate with assembled WH396 series housing and crimps. 5Amp locking power connector
