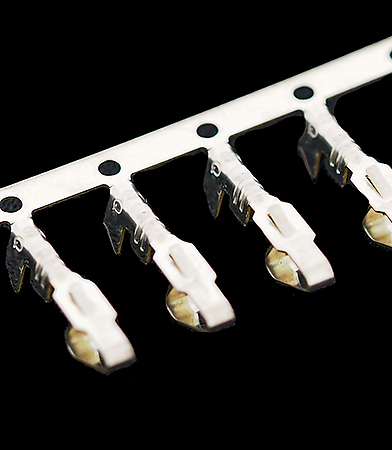

wh396t-010 crimp pic

WH396 - Valcon 3.96mm 5A Wire-to-Board Reeled Crimps - Fast Stock (WH39T)

From: £0.015
Copied to clipboard

>> FAST STOCK PRODUCT >>

We can assemble your discrete wire requirement for Fast Stock delivery >> Contact Toby Now!

Part No. Stock Qty 6000+ Qty
WH396T-010
6000 per reel
18000 in stock £0.015
You have ordered more than we have in stock, Standard delivery 15 - 17 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Contact Material: Brass

Contact Plating: Tin

Pin Type: 1.14mm (0.045”) square pin

Current Rating: 5 Amps

Rated Voltage: 250V AC/DC

DWV: 1500V AC for 1 minute

Insulation Resistance: 1000 MΩ min.

Operating Temperature: -25°C to +85°C

Tolerance: ±0.35mm

RoHS compliant

Toby can make your crimp and poke cable assembly, contact Toby now to find out more about how Toby can deliver >>Fast Stock Solutions>> for you.

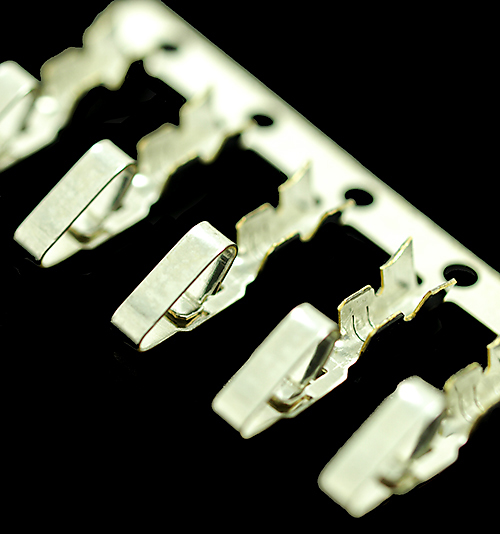

Valcon WH396 series reeled crimps for assembly with WH396 series housings. Mates with WH396 series housings for an excellent 3.96mm pitch wire-to-board system.
