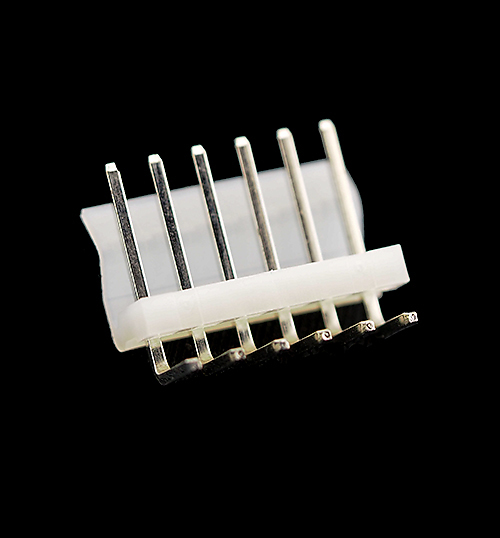

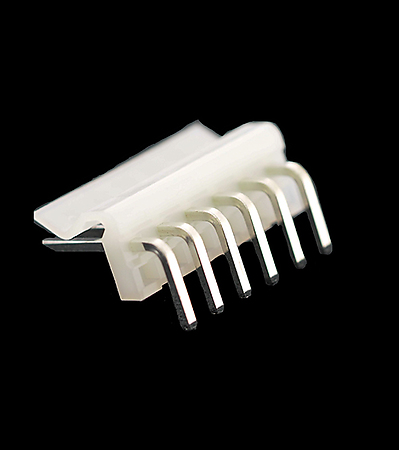

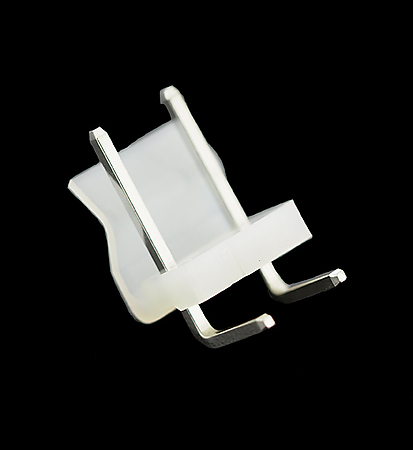

WH396 - Valcon 3.96mm 5A Wire-to-Board Right Angle Locking Header (WH39R)

From: £0.03
Copied to clipboard
  • 3.96mm pitch single row through hole PCB footprint
  • Locking header with right angle PCB orientation
  • Straight Version available WH396-xxS-010
  • Mates with loaded WH396 series housings
  • MOQ & multiples may apply
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
WH396-02R-010
1770 in stock £0.055£0.045£0.04£0.03
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
WH396-03R-010
2515 in stock £0.08£0.07£0.055£0.05
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
WH396-04R-010
1221 in stock £0.11£0.09£0.07£0.06
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
WH396-05R-010
575 in stock £0.14£0.12£0.095£0.08
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
WH396-06R-010
1212 in stock £0.17£0.14£0.11£0.095
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
WH396-07R-010
1460 in stock £0.195£0.16£0.13£0.11
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
WH396-08R-010
848 in stock £0.23£0.19£0.15£0.13
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
WH396-09R-010
141 in stock £0.25£0.21£0.17£0.14
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
WH396-10R-010
1304 in stock £0.28£0.23£0.19£0.16
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
WH396-12R-010
130 in stock £0.34£0.28£0.23£0.19
You have ordered more than we have in stock, Standard delivery 15 - 17 working days
WH396-14R-010
339 in stock £0.40£0.33£0.26£0.22
You have ordered more than we have in stock, Standard delivery 15 - 17 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • Video
  • More Info

Insulator Material: Clear Nylon 66 UL94V-2

Contact Material: Brass

Contact Plating: Tin

Pin Type: 1.14mm (0.045”) square pin

Current Rating: 5 Amps

Rated Voltage: 250V AC/DC

DWV: 1500V AC for 1 minute

Insulation Resistance: 1000 MΩ min.

Operating Temperature: -25°C to +85°C

Tolerance: ±0.35mm

RoHS compliant

Contact Toby now to find out more about how Toby can deliver >>Fast Stock Solutions>> for you.


Valcon WH396 series right angle PCB mount header mates with assembled WH396 series housing and crimps.
