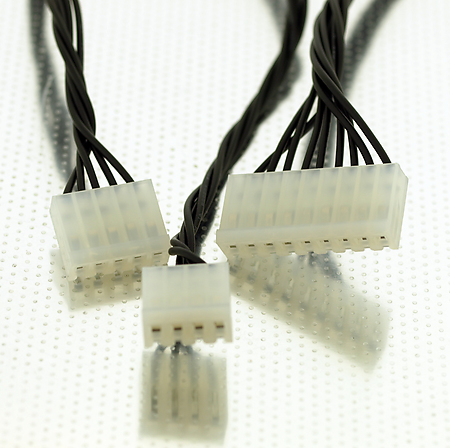

WH396 Wire assembly pic

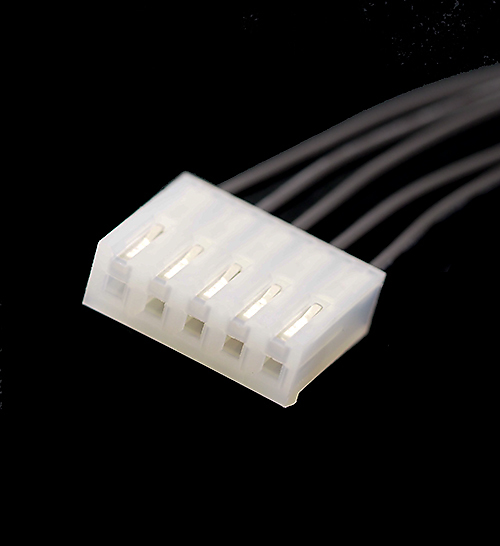

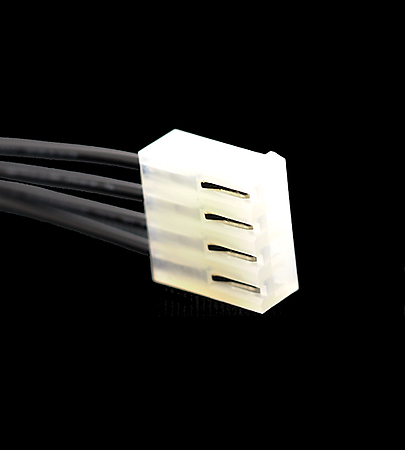

WH396 - Valcon 3.96mm Wire Assembly - Fast Stock (WH39E)

From: £0.37
Copied to clipboard

>> FAST STOCK PRODUCT >>

We can assemble your discrete wire requirement for Fast Stock delivery >> Contact Toby Now!

  • UL1007 - 22 & 24 AWG
  • 02-16 positions or crimp only (CO)
  • Dual End & Single End available
  • Pull Force Test Standard - EN 60352-2
  • Other sizes and types available - please contact us
  • Please note: Custom made assemblies are non-returnable and non-cancellable
Data sheet Technical Specification Related Products
Part No. Stock Qty 1+ 100+ Qty
WH396-02-SE-300-22-BLK
20 in stock £0.99£0.59
When ordering more than in stock, please contact us to confirm delivery time
WH396-04-SE-200-22-BLK
10 in stock £1.08£0.75
When ordering more than in stock, please contact us to confirm delivery time
WH396-05-SE-200-22-BLK
10 in stock £1.41£0.97
When ordering more than in stock, please contact us to confirm delivery time
WH396-06-SE-300-22-BLK
20 in stock £1.59£1.19
When ordering more than in stock, please contact us to confirm delivery time
WH396-09-SE-200-22-BLK
10 in stock £2.73£2.07
When ordering more than in stock, please contact us to confirm delivery time
WH396-CO-DE-150-24-BLK
Dual End - Black 		Standard delivery
2 - 4 working days * 		£0.49£0.44
When ordering more than in stock, please contact us to confirm delivery time
WH396-CO-DE-150-24-R
Dual End - Red 		Standard delivery
2 - 4 working days * 		£0.49£0.44
When ordering more than in stock, please contact us to confirm delivery time
WH396-CO-DE-300-24-BLK
Dual End - Black 		Standard delivery
2 - 4 working days * 		£0.53£0.48
When ordering more than in stock, please contact us to confirm delivery time
WH396-CO-DE-300-24-R
Dual End - Red 		Standard delivery
2 - 4 working days * 		£0.53£0.48
When ordering more than in stock, please contact us to confirm delivery time
WH396-CO-SE-150-22-BLK
Single End - Black 		Standard delivery
2 - 4 working days * 		£0.40£0.37
When ordering more than in stock, please contact us to confirm delivery time
WH396-CO-SE-150-22-R
Single End - Red 		Standard delivery
2 - 4 working days * 		£0.40£0.37
When ordering more than in stock, please contact us to confirm delivery time
WH396-CO-SE-150-24-BLK
Single End - Black 		Standard delivery
2 - 4 working days * 		£0.40£0.37
When ordering more than in stock, please contact us to confirm delivery time
WH396-CO-SE-150-24-R
Single End - Red 		Standard delivery
2 - 4 working days * 		Contact UsContact Us
When ordering more than in stock, please contact us to confirm delivery time
WH396-CO-SE-300-22-BLK
Single End - Black 		Standard delivery
2 - 4 working days * 		£0.44£0.40
When ordering more than in stock, please contact us to confirm delivery time
WH396-CO-SE-300-22-R
Single End - Red 		Standard delivery
2 - 4 working days * 		£0.44£0.40
When ordering more than in stock, please contact us to confirm delivery time
WH396-CO-SE-300-24-BLK
Single End - Black 		Standard delivery
2 - 4 working days * 		£0.44£0.40
When ordering more than in stock, please contact us to confirm delivery time
WH396-CO-SE-300-24-R
Single End - Red 		Standard delivery
2 - 4 working days * 		£0.44£0.40
When ordering more than in stock, please contact us to confirm delivery time

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Housing Material: Clear Nylon 66 UL94V-2

Crimp Material: Brass

Crimp Plating: Tin

Current Rating: 5 Amps

Rated Voltage: 250V AC/DC

DWV: 1500V AC for 1 minute

Insulation Resistance: 1000 MΩ min.

Operating Temperature: -25°C to +85°C

Tolerance: ±0.35mm

 Wire: UL1007  22AWG to 24AWG

RoHS Compliant

WH396 series is a >>Fast Stock Solution>> product from Toby, contact sales to find out more.
