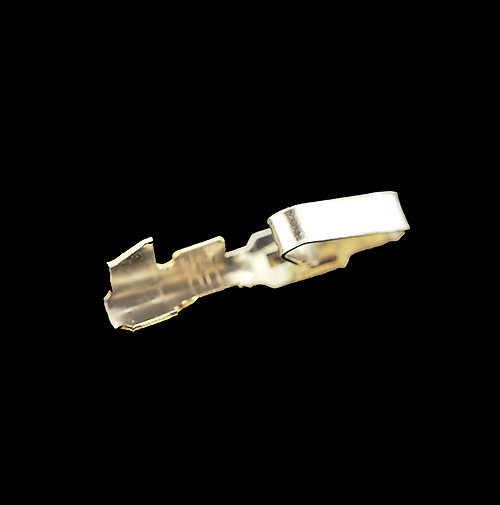

WH396 Loose Crimp WEB PIC 1
WH396 Loose Crimp WEB PIC 1

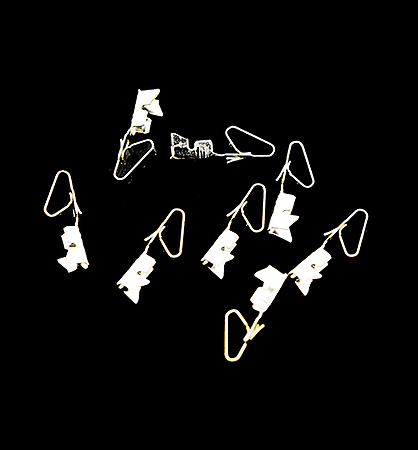

WH396 Loose Crimp WEB PIC 2

WH396 - Valcon 3.96mm 5A Wire-to-Board Loose Crimps - Fast Stock (WH39L)

From: £0.04
Copied to clipboard

>> FAST STOCK PRODUCT >>

We can assemble your discrete wire requirement for Fast Stock delivery >> Contact Toby Now!

Part No. Stock Qty 10+ 100+ 500+ 1000+ Qty
WH396T-L
13766 in stock £0.07£0.06£0.05£0.04
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Contact Material: Brass

Contact Plating: Tin

Pin Type: 1.14mm (0.045”) square pin

Current Rating: 5 Amps

Rated Voltage: 250V AC/DC

DWV: 1500V AC for 1 minute

Insulation Resistance: 1000 MΩ min.

Operating Temperature: -25°C to +85°C

Tolerance: ±0.35mm

RoHS compliant

Toby can make your bespoke wire assembly, Contact Toby to find out more about how Toby can deliver >>Fast Stock Solutions>> for you

Valcon WH396 series loose bulk crimps for assembly with WH396 series housings. Mates with WH396 series PCB connectors for an excellent 3.96mm pitch wire-to-board system.
