Lutronic

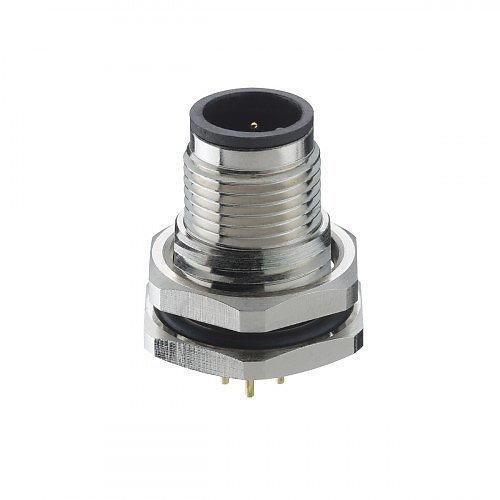

1231 Lutronic M12 Rear Mount Male Panel Connector (1231)

From: £4.22
  • M12 panel mount male connector
  • A-coded, IP67 rated
  • For rear side mounting PG9 thread
  • RoHS compliant, cULus approval pending
  • MOQ & multiples may apply
Part No. Stock Qty 5+ 10+ 50+ 100+ Qty
1231-04-T9CP
4pin A Code M12 PnlMt-PG9 Thrd
10 in stock £7.39£4.93£4.55£4.22
1231-08-T9CP
8pin A Code M12 PnlMt-PG9 Thrd
10 in stock £11.32£7.55£6.96£6.47

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Temperature range: -25 °C/+80 °C

Insulating body: PA

Contact pin: CuZn, pre-nickel and gold-plated

Housing: CuZn, nickel-plated

Mating cycles: ≥ 100

Insertion force: ≤ 10 N  *1

Withdrawal force: ≤ 15 N  *2

Protection class: IP67  *3

1) measured with a proper counterpart

2) measured with a proper counterpart

3) according to IEC DIN EN 60529, only in locked condition with an appropriate counterpart



Electrical data (at Tamb 20 °C)

Contact resistance: ≤ 5 mΩ

Rated current: 4 A (Tamb 40 °C)

Rated voltage: 50 V AC/60 V DC (with pollution degree 3)  *1

Rated impulse voltage: 1,5 kV  *2

1) acc. to IEC 60664/DIN EN 60664/CTI UL classification acc. to ANSI/UL 746A

2) acc. to IEC 60664/DIN EN 60664/CTI UL classification acc. to ANSI/UL 746A

Lutronic M12 panel mount connector, male, A-coded, IP67, for rear side mounting, thread PG9, for printed circuit boards
