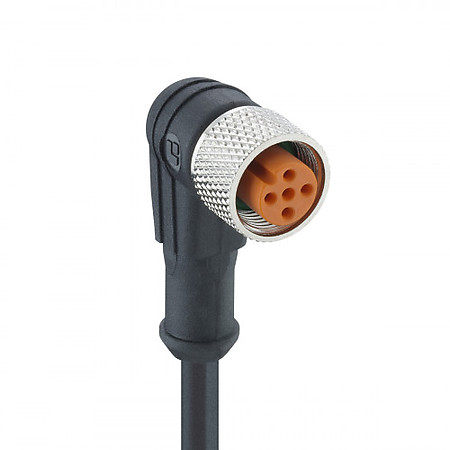

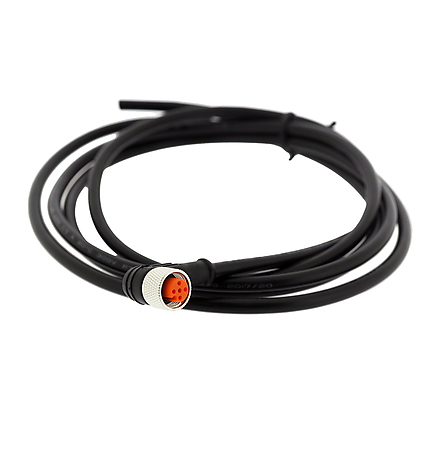

1205-0x Lutronic M12 Single End Right Angle Female Cordset (12050)

From: £5.99
  • Actuator/sensor cordset with overmolded connector
  • 4pin, 5pin, 8pin
  • Cable end 1: M12 female, angled, A-coded, IP67
  • Cable end 2: blunt cut
  • Cable: PVC, black
  • RoHS compliant, cULus approved
  • MOQ & multiples may apply
Part No. Stock Qty 5+ 10+ 50+ 100+ Qty
1205-05-003-2M
2 metre length
10 in stock £10.52£6.99£6.47£5.99
1205-08-004-2M
2 metre length
10 in stock £16.39£10.93£9.98£9.35

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Temperature range: -25 °C/+80 °C

Insulating body: TPU GF, HB according to UL94

Contact bush: CuZn, pre-nickel and gold-plated

Overmolding/handle: PVC, HB according to UL94



Mating cycles: ≥ 100

Insertion force: ≤ 10 N (4-5 poles)

≤ 23 N (8 poles)  *1

Withdrawal force: ≤ 15 N (4-5 poles)

≤ 30 N (8 poles)  *2

Protection class: IP67  *3

1) measured with a proper counterpart

2) measured with a proper counterpart

3) according to IEC DIN EN 60529, only in locked condition with an appropriate counterpart



Electrical data (at Tamb 20 °C)

Contact resistance: ≤ 10 mΩ

Rated current: 4 A (4-5 poles)

2 A (8 poles)

Tamb 40 °C)

Rated voltage: 250 V (4 poles)

60 V (5 poles)

30 V (8 poles)

(with pollution degree 3)

Rated impulse voltage: 2,5 kV (4 poles)

1,5 kV (5 poles)

0,8 kV (8 poles)

Lutronic Series M12 Actuator/Sensor Cordsets M12 Cordsets with overmolded connectors, single or double-ended, with threaded joint M12 according to IEC 61076-2-101, IP67
