| Part No. | Stock Qty | 5+ | Qty |
|---|---|---|---|
|
1200-04-002-2M
|
20 in stock | £6.34 | |
|
1200-04-002-5M
|
10 in stock | £8.40 |
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Temperature range: -25 °C/+80 °C
Insulating body: TPU GF, HB according to UL94
Contact bush: CuZn, pre-nickel and gold-plated
Overmolding/handle: PVC, HB according to UL94
Mating cycles: ≥ 100
Insertion force: ≤ 10 N *1
Withdrawal force: ≤ 15 N *2
Protection class: IP67 *3
1) measured with a proper counterpart
2) measured with a proper counterpart
3) according to IEC DIN EN 60529, only in locked condition with an appropriate counterpart
Electrical data (at Tamb 20 °C)
Contact resistance: ≤ 10 mΩ
Rated current: 4 A (Tamb 40 °C)
Rated voltage: 250 V (with pollution degree 3)
Rated impulse voltage: 2,5 kV

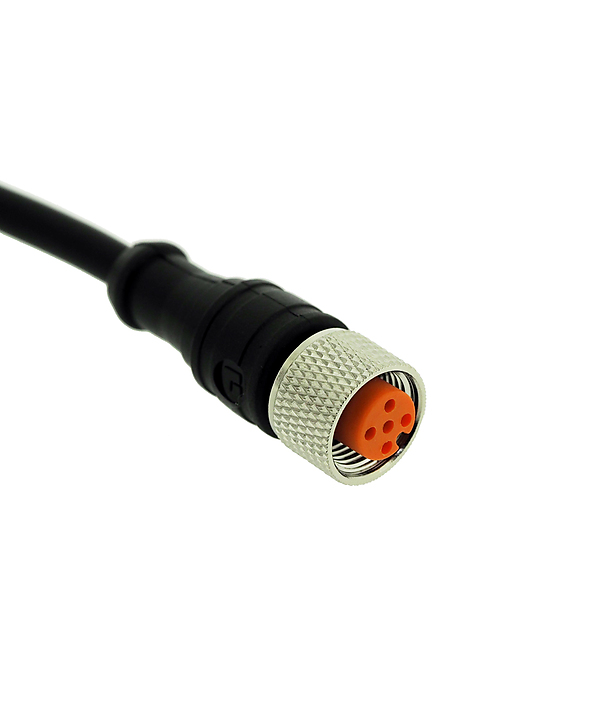

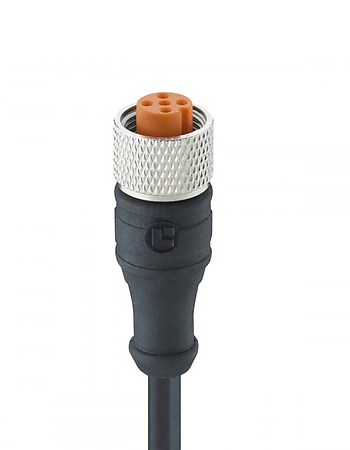

Lutronic Series M12 Actuator/Sensor Cordsets M12 Cordsets with overmolded connectors, single or double-ended, with threaded joint M12 according to IEC 61076-2-101, IP67
