Lutronic

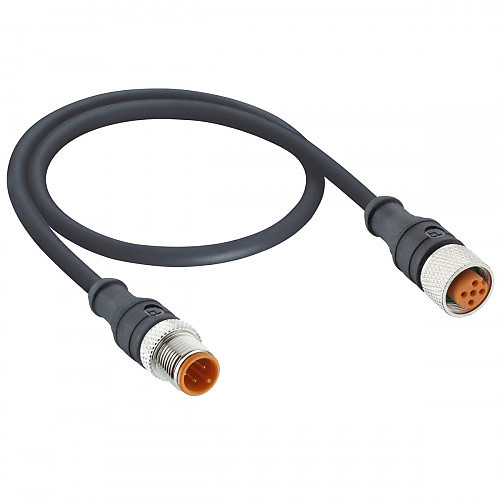

1210-1200 4Pin M12 Male to Female PUR cable Cordset (1215M)

From: £14.27
Copied to clipboard
  • Actuator/sensor cordset with overmolded connectors
  • Cable end 1: M12 male, straight, A-coded, IP67
  • Cable end 2: M12 female, straight, A-coded, IP67
  • Cable: PUR, black
  • RoHS compliant and cULus approved
  • MOQ & multiples may apply
Part No. Stock Qty 5+ Qty
1210-1200-04-301-06M
Standard delivery
60 - 62 working days *
Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
1210-1200-04-301-5M
10 in stock £14.27
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Temperature range: -25 °C/+80 °C

Insulating body: TPU GF, HB according to UL94

Contact bush: CuZn, pre-nickel and gold-plated

Contact pin: CuZn, pre-nickel and gold-plated

Overmolding/handle: TPU  *1

1) material halogen-free



Mating cycles: ≥ 100

Insertion force: ≤ 23 N  *1

Withdrawal force: ≤ 23 N  *2

Protection class: IP67  *3

1) measured with a proper counterpart

2) measured with a proper counterpart

3) according to IEC DIN EN 60529, only in locked condition with an appropriate counterpart



Electrical data (at Tamb 20 °C)

Contact resistance: ≤ 10 mΩ

Rated current: 4 A (Tamb 40 °C)

Rated voltage: 50 V (with pollution degree 3)

Rated impulse voltage: 1,5 kV

Lutronic M12 Actuator/Sensor Cordset with overmolded connectors, double-ended, with threaded joint M12 according to IEC 61076-2-101, IP67
