11-P225 - Valcon 50 Ohm MCX Right Angle PCB Mount Female Connector

11-P225 - Valcon 50 Ohm MCX Right Angle PCB Mount Female Connector (11P22)

From: £2.42

Right Angle PCB orientation
Available Through Hole or SMT
50 Ohm MCX Socket
Gold plated center pin

Part No.	Stock Qty	100+	500+	1000+	Qty
11-P225-R Through hole	200 in stock	£3.09	£2.73	£2.42	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
11-P2251-R Surface mount	Standard delivery 20 - 22 working days *	£3.17	£2.92	£2.71	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Impedance: 50 ohm

Frequency Range: 0 to 6.0 GHz

VSWR 0-2 GHz: 1.22 max GHz(Straight) | 1.50 max GHz(Right angle)

VSWR 2-6 GHz: 1.35 max GHz(Straight) | 1.63 max GHz(Right angle)

Insertion Loss: 0.1dB max @ 1GHz(Straight) | 0.2dB max @ 1GHz(Right angle)

Body: Nickel plated Brass

Center Pin: Gold plated Berylium Copper

Dielectric: PTFE

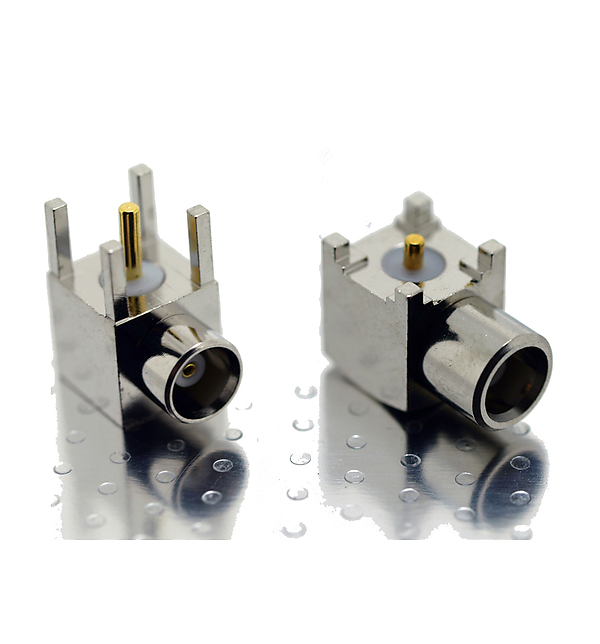

Valcon 50 Ohm MCX PCB mount right angle female connectors, available surface mount (SMT) or through hole mounting.

MCX micro miniature connectors are an excellent and particularly simple connection solution. Suitable for 50 ohm applications and used at frequency range up to 6 GHz. The MCX devices enable a 30% space reduction over similar SMB/SMC types. MCX is available for industry standard cable and as a printed circuit board device. The "push-on/pull-off" connection feature between devices, the small size, weight, performance and ease of assembly is a great option in dense packaging layouts. These include GPS, wireless communications (WLAN and mobile) and automotive.
