11-231-L-R Valcon 50 Ohm MCX Threaded Bulkhead Type Connector

11-231-L-R Valcon 50 Ohm MCX Threaded Bulkhead Type Connector (11231)

From: £1.71

50 Ohm MCX Bulkhead Jack
Crimp Type (RG174 / 316)
Gold Plated Contact
M5.0x0.5 Threaded
With Lock Washer & Nut

Part No.	Stock Qty	1+	100+	500+	1000+	Qty
11-231-L-R MCX 50ohm Threaded Bulkhead	986 in stock	£3.10	£2.58	£2.08	£1.71	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Impedance: 50 ohm

Frequency Range: 0 to 6.0 GHz

VSWR 0-2 GHz: 1.22 max GHz(Straight) | 1.50 max GHz(Right angle)

VSWR 2-6 GHz: 1.35 max GHz(Straight) | 1.63 max GHz(Right angle)

Insertion Loss: 0.1dB max @ 1GHz(Straight) | 0.2dB max @ 1GHz(Right angle)

Body Material: Gold Plated Brass

Dielectric Material: PTFE

Centre Pin Material: Gold Plated Berylium Copper

Ferrule/Lock Washer/Nut Material: Gold Plated Brass

RoHS Compliant

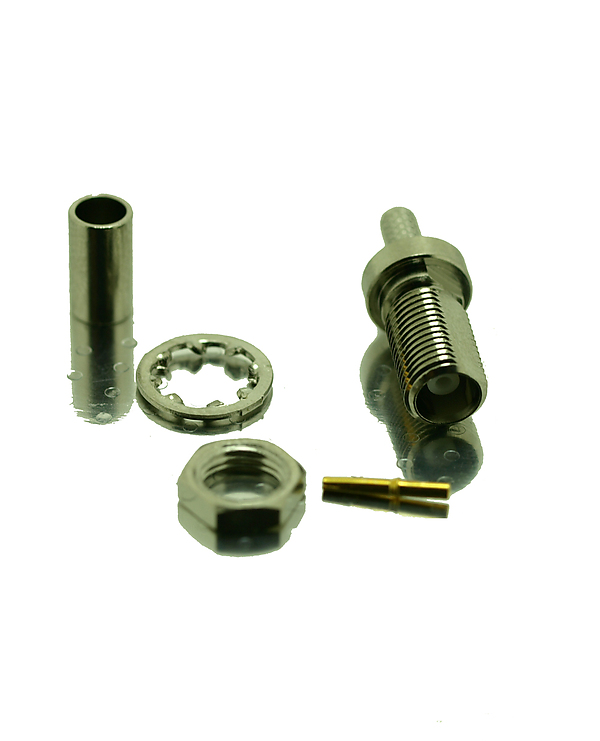

Valcon 50 Ohm MCX connector, threaded bulkhead type assembly kit.

MCX micro miniature connectors are an excellent and particularly simple connection solution. Suitable for 50 ohm applications and used at frequency range up to 6 GHz. The MCX devices enable a 30% space reduction over similar SMB/SMC types. MCX is available for industry standard cable and as a printed circuit board device. The "push-on/pull-off" connection feature between devices, the small size, weight, performance and ease of assembly is a great option in dense packaging layouts. These include GPS, wireless communications (WLAN and mobile) and automotive.
