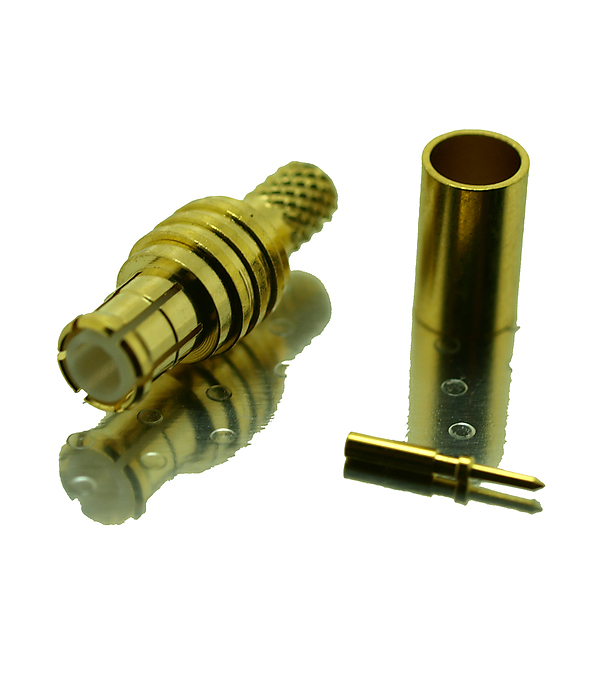

11-111L-1-R Valcon MCX Straight 50 Ohm Crimp Plug (11111)

From: £1.47

Crimp type plug
50 Ohm
For RG174U & 316U cable types
Gold plated on contact & body
Teflon insulator

Part No.	Stock Qty	1+	100+	500+	1000+	Qty
11-111L-1-R MCX Male Crimp Type Straight	312 in stock	£2.66	£2.21	£1.77	£1.47	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Impedance: 50 ohm

Frequency Range: 0 to 6.0 GHz

VSWR 0-2 GHz: 1.22 max GHz(Straight) | 1.50 max GHz(Right angle)

VSWR 2-6 GHz: 1.35 max GHz(Straight) | 1.63 max GHz(Right angle)

Insertion Loss: 0.1dB max @ 1GHz(Straight) | 0.2dB max @ 1GHz(Right angle)

Valcon 50 Ohm MCX Male crimp connectors, suitable for RG174U & 316U cable

MCX micro miniature connectors are an excellent and particularly simple connection solution. Suitable for 50 ohm applications and used at frequency range up to 6 GHz. The MCX devices enable a 30% space reduction over similar SMB/SMC types. MCX is available for industry standard cable and as a printed circuit board device. The "push-on/pull-off" connection feature between devices, the small size, weight, performance and ease of assembly is a great option in dense packaging layouts. These include GPS, wireless communications (WLAN and mobile) and automotive.
