| Part No. | Stock Qty | 500+ | 1000+ | 5000+ | 10000+ | Qty |
|---|---|---|---|---|---|---|
|
KLDPX-0207-A-1
2.0mm Dia. Pack 500pcs |
Standard delivery 10 - 12 working days * |
£0.62 | £0.515 | £0.455 | £0.43 | |
|
KLDPX-0207-B-1
2.5mm Dia. Pack 500pcs |
Standard delivery 10 - 12 working days * |
£0.62 | £0.515 | £0.455 | £0.43 |
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Materials and Finish
Plastic Housing : PBT Thermoplastic, UL 94V-0 Rated, Black Color
Center Pin: Copper Alloy, Nickel Plated
Contact #1: Copper Alloy, Tin Plated
Contact #2: Copper Alloy, Tin Plated
Contact #3: Copper Alloy, Tin Plated
Electrical Characteristics
Rated Current: 2.5A
Rated Voltage: 13.5V DC
Insulation Resistance:
100 Megohms Min. at 500V DC
Contact Resistance:
30 Milliohms Max. (Initial)
60 Milliohms Max. (Final)
Dielectric Withstanding Voltage:
500V AC RMS for 1 Minute
Mechanical Characteristics
Insertion Force: 0.3 Kg - 3.0 Kgf
Withdrawal Force: 0.3 Kg - 3.0 Kgf
Durability: 5000 Mating Cycles Min.
Operating Temperature: -25°C to +85°C
RoHS Compliant

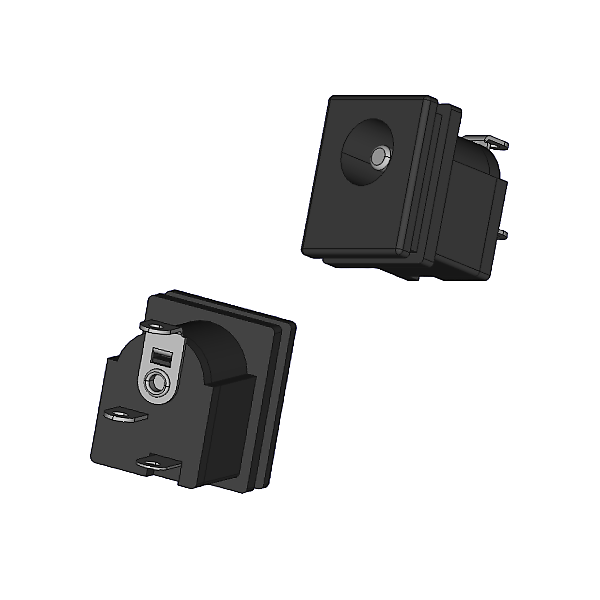

This Kycon panel mount DC power jack is suitable for portable electronic devices. With 5000 minimum mating cycles, CSA/NRTL and UL approvals, this is a great quality excellent value DC connector.
Series: KLDPX-0207 - x - 1 Panel Mount DC Power Jack
Diameter Options:
A = 2.0mm Center Pin Diameter
B - 2.5mm Center Pin Diameter
