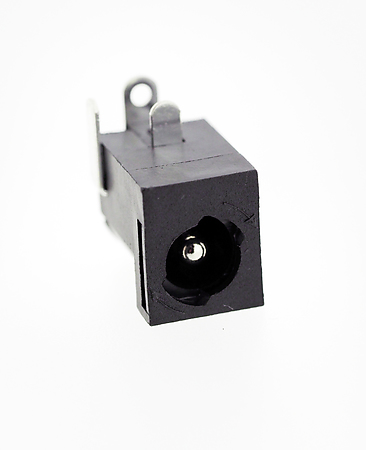

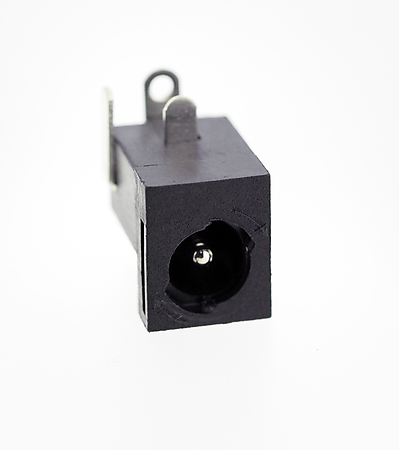

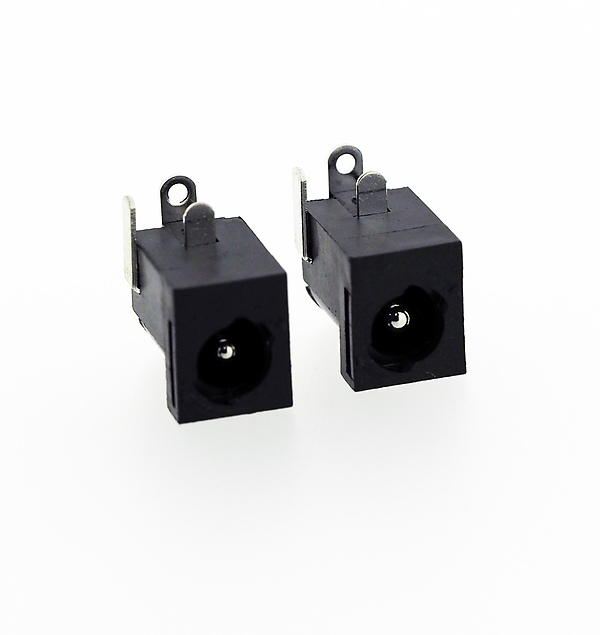

KLDHCX - Kycon Locking 5A PCB Mount DC Power Jack (KLDHCX)

From: £0.49
  • Locking type connector
  • 2mm (KLDHCX-0202-A-LT) and 2.5mm (KLDHCX-0202-B-LT) Pin types
  • Built-in DC on/off Switch
  • CSA/NRTL and UL Certified
  • 5000 mating cycles
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
MOQ 500 - 500 per pack
Standard delivery
12 - 14 working days *
MOQ 500 - 500 per pack
Standard delivery
12 - 14 working days *

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

RoHS Compliant Part

Plastic Housing: PBT, UL94V-0 Rated, Black Color

Centre Pin: Brass, Nickel Plated

Contact #1: Brass, Tin Plated

Contact #2:Phosphor Bronze, Tin Plated

Contact #3: Brass, Tin Plated

Durability Test: 5000 Cycles

Insertion Force: 0.3kg Max.

Extraction Force: 0.3kg Min.

Rated Current: 5A

Rated Voltage: 24V RMS

Insulation Resistance: 50 MΩ Min. at 100 or 200V DC for 1 Minute

Contact Resistance: 30 milliΩ Max.

Dielectric Withstanding Voltage: 250V AC Min. for 1 Minute

An excellent and robust power connector from Kycon, for use with locking/non-locking tuning fork style plug connectors. For applications like Laptop and Palm Computers, Portable Modems, Radar Detectors, and Other Portable Devices.
