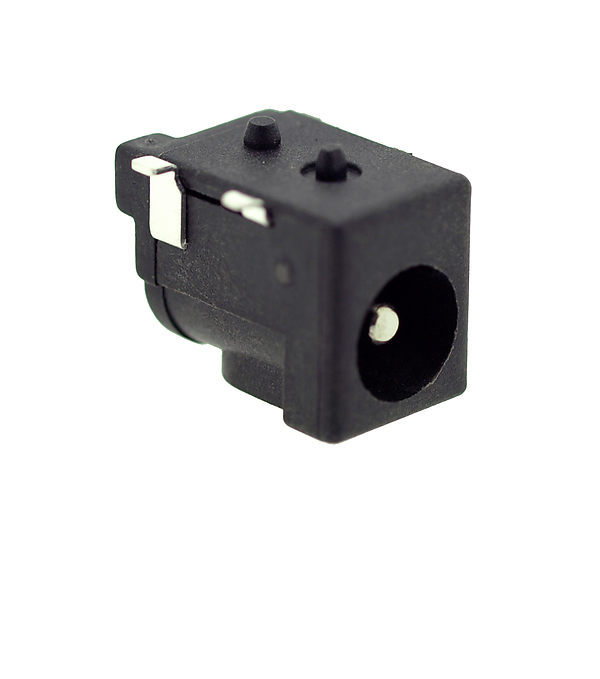

KLDX - Kycon Surface Mount DC Power Jack, 11mm PCB Profile (KLDS2)

From: £0.66
  • 2mm or 2.5mm centre pin
  • 11mm PCB profile
  • Built-In DC On/Off Switch
  • 5000 mating cycles minimum
  • CSA/NRTL and UL certified
Part No. Stock Qty 1+ 100+ 350+ 700+ 1050+ Qty
Standard delivery
12 - 14 working days *
Contact UsContact UsContact UsContact UsContact Us
375 in stock £1.50£1.22£0.88£0.82£0.66
549 in stock £1.50£1.22£0.88£0.82£0.66

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Contact Resistance Before Durability Test Between Terminals: 30 milliohms Max.

Plug to Contacts: 50 milliohms Max.

After Durability Test Between Terminals: 60 milliohms Max.

Plug to Contacts: 100 milliohms Max.

Rated Voltage: 24V DC

Rated Current: 3.5A

Insulation Resistance: 100 Megohms Min. at 500V DC

Dielectric Withstanding Voltage: 500V AC RMS for 1 Minute
