TP-104 Individually Cut Colour-Coded Test Points – 1.3mm & 1.6mm PCB Holes (TP4XX)

From: £0.08

Individually cut test points for quick deployment
1.3mm & 1.6mm PCB hole diameters for compatibility

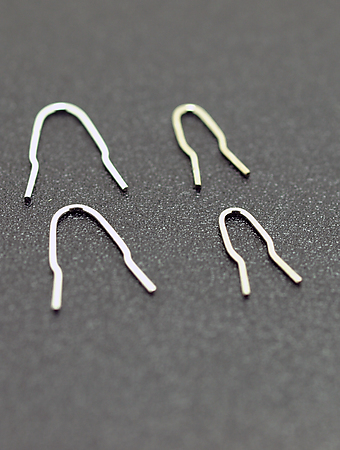

Loop-configured test point for secure oscilloscope probe connection

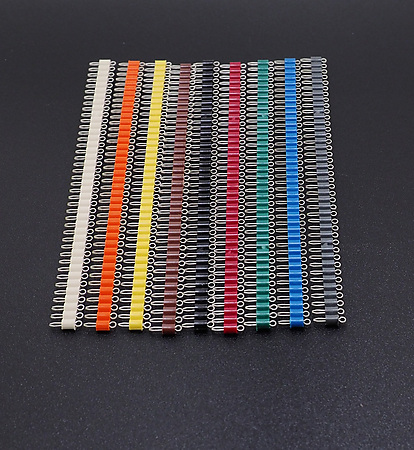

Colour-coded insulator bodies for easy identification
Solid, non-slip grip for test clips and probes
Low-profile design for high-density PCB layouts
Single-hole wave-solderable mounting for strong PCB adhesion
Manufactured by Components Corporation
Precision-cut in-house for fast stock turnaround

NOTE: *Purple only available while stock lasts*

Part No.	Stock Qty	30+	510+	990+	10020+	Qty
TP-104-01-04 Yellow test point	30 in stock	£0.13	£0.11	£0.10	£0.08	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Manufacturer: Components Corporation

Part Number: TP-104-xx

Contact Material: 0.015" x 0.030" Phosphor Bronze 8510 Alloy

Finish: 0.001 Matte Tin over 0.00005 Nickel

Collar Material: 15% Glass-Filled Polyester

Mounting Hole: 0.063" (1.6mm) diameter

Soldering Method: Wave-solderable

Compliance: RoHS & REACH

NOTE: MOQ & multiples may apply

The TP-104 individually cut test points from Components Corporation offer a secure, colour-coded connection for oscilloscope probing, circuit debugging, and signal testing. Precision-cut in-house for fast stock turnaround, these wave-solderable test points provide a quick and efficient solution for prototype and production PCB layouts.

Available in 1.3mm & 1.6mm PCB hole sizes, these low-profile test points are ideal for high-density circuit boards in industrial, medical, and consumer electronics applications.

For more information, review the data sheet or Contact Toby
