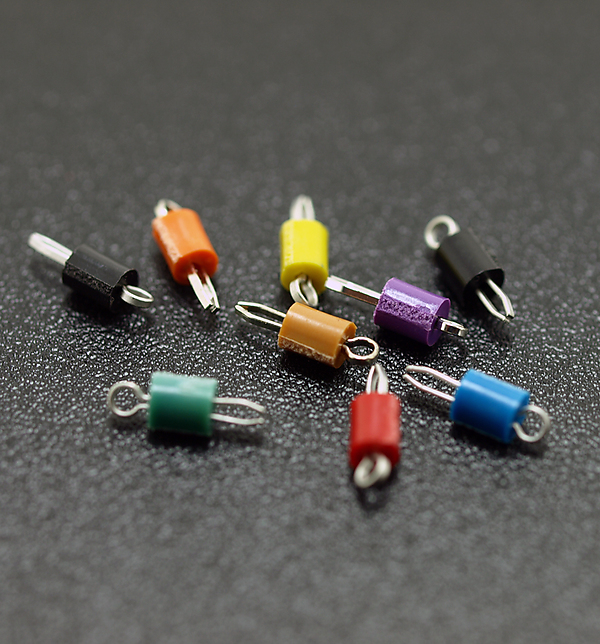

TP-105 Single Cut Colour Coded Test Points, 1mm Diameter PCB Hole (TP5XX)

From: £0.06
Copied to clipboard
  • ​Individually cut
  • Colour coded insulator bodies
  • 1mm Diameter PCB Hole
  • Loop configured test point design
  • Solid non-slip grip of test clips and probes
  • Low profile, single hole wave-solderable mounting
  • Manufactured by Components Corporation
  • MOQ & multiples may apply
Part No. Stock Qty 40+ 480+ 1000+ 10000+ Qty
TP-105-01-00
Black test point
1000 in stock £0.09£0.08£0.07£0.06
You have ordered more than we have in stock, Standard delivery 3 - 5 working days
TP-105-01-02
Red test point
760 in stock £0.09£0.08£0.07£0.06
You have ordered more than we have in stock, Standard delivery 3 - 5 working days
TP-105-01-03
Orange test point
400 in stock £0.09£0.08£0.07£0.06
You have ordered more than we have in stock, Standard delivery 10 - 12 working days
TP-105-01-04
Yellow test point
430 in stock £0.09£0.08£0.07£0.06
You have ordered more than we have in stock, Standard delivery 10 - 12 working days
TP-105-01-05
Green test point
400 in stock £0.09£0.08£0.07£0.06
You have ordered more than we have in stock, Standard delivery 10 - 12 working days
TP-105-01-09
White test point
400 in stock £0.09£0.08£0.07£0.06
You have ordered more than we have in stock, Standard delivery 10 - 12 working days
TP-105-17-00
17 pos. - Black test point
20 in stock £1.53£1.36£1.19£0.99
You have ordered more than we have in stock, Standard delivery 10 - 12 working days
TP-105-20-00
Black test point
Standard delivery
10 - 12 working days *
Contact UsContact UsContact UsContact Us
You have ordered more than we have in stock, Standard delivery 10 - 12 working days
TP-105-20-02
Red test point
Standard delivery
10 - 12 working days *
Contact UsContact UsContact UsContact Us
You have ordered more than we have in stock, Standard delivery 10 - 12 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Contact Material: .010" x .020" Phosphor Bronze #510 Alloy

Finish: .0001 Matte Tin over .00005 Nickel

Collar: 15% Glass Filled Polyester

Mounting Holes: .035" to .042" diameter hole

Maximum Current: 2.0 amperes

The TP-105 series test point offers a functionally superior alternative to other means of board level trouble shooting, particularly .025" square header posts. While featuring a loop profile for positive test probe retention, this product is available in any combination of positions, from one to forty, at .100" centers and fits in the popular .035" diameter hole size. The above board profile is substantially below that of headers and other devices used as test points. Thus, a re-fit can be accomplished without any printed circuit board layout re-design costs, while significantly reducing test point height and improving function.
