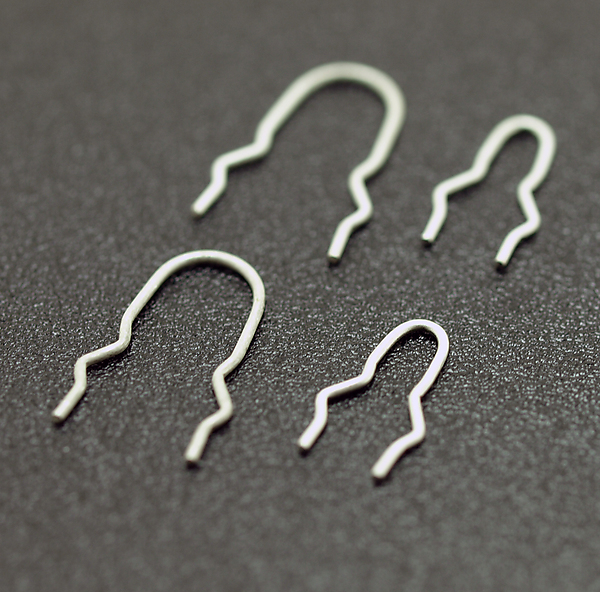

TP-101 Wire Form Test Points (TP101)

From: £0.08
  • PTH version provides snug, interference fit

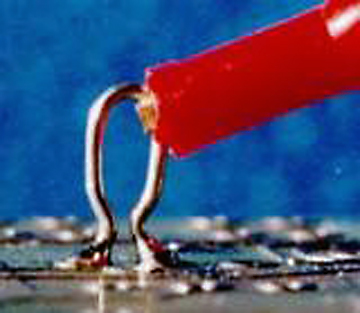

  • "Above board" profile accepts a wide range of test probes & spring clips
  • Economical solution for board level, trouble shooting applications
  • Manufactured by Components Corporation
Part No. Stock Qty 10+ 100+ 1000+ 5000+ Qty
TP-101-10
Sold in multiples of 10
3087 in stock £0.15£0.13£0.11£0.08
TP-101-20
Sold in multiples of 10
600 in stock £0.17£0.13£0.11£0.08
TP-101-25
Sold in multiples of 10
975 in stock £0.18£0.14£0.12£0.09
TP-101-30
Sold in multiples of 10
900 in stock £0.20£0.15£0.13£0.10

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Contact Material: .020" diameter 70/30 Brass Wire.

Finish: .0001 Matte Tin over .00005 Nickel

Mounting Holes: Two, .040" diameter +/- .003", plated through holes

Maximum Current: 2.0 amperes
