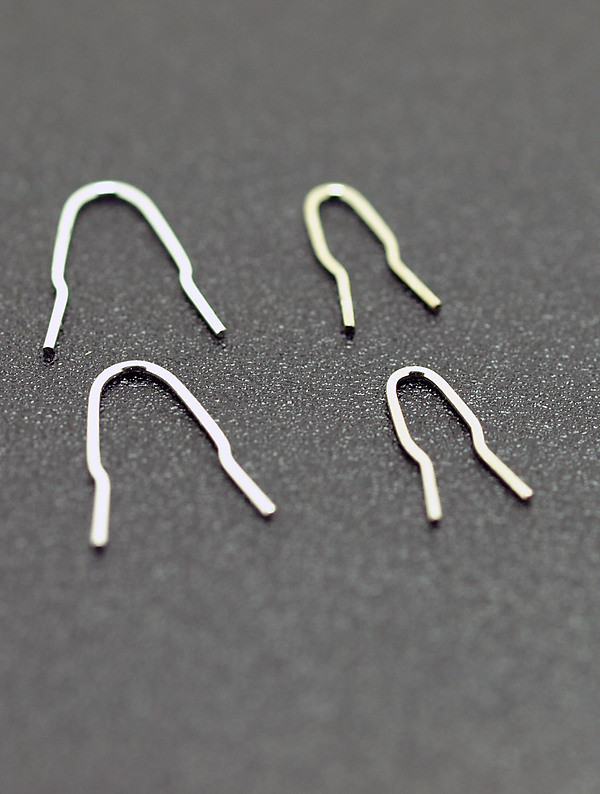

TP-102 Wire Form Test Points, 1.7mm - 2.94mm PCB Hole Diameters (TP102)

From: £0.12
Copied to clipboard
  • Manufactured by Components Corporation

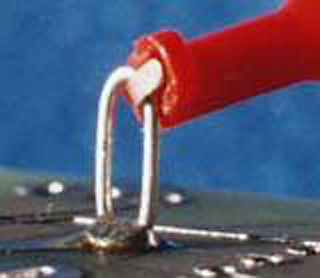

  • Unique loop profile for commonly used spring loaded test probes and clips
  • Single hole mounting design, two styles cover most "turret" type hole diameters
  • TP-102-01 covers PCB hole diameters 1.7mm to 1.98mm
  • TP-102-02 covers PCB hole diameters 2.8mm to 2.94mm
  • MOQ & multiples may apply
Part No. Stock Qty 10+ 100+ 1000+ 5000+ Qty
TP-102-01
660 in stock £0.24£0.19£0.16£0.12
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TP-102-02
985 in stock £0.27£0.21£0.18£0.13
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Contact Material: .020" diameter Phosphor Bronze #510 Alloy Finish: .0001 Matte Tin over .00005 Nickel

Mounting Holes: TP-102-01 = .067" to .078" diameter TP-102-02 = .112" to .116" diameter

Maximum Current: 2.0 amperes

With only two part number types, the TP-102 series covers the complete range of hole diameters most commonly employed for "turret" terminals; the need for costly re-design of circuit board art work is eliminated
