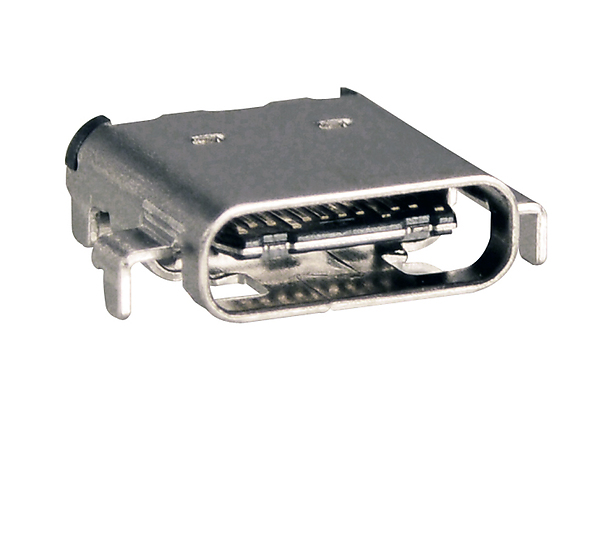

KUSBX - Kycon USB Type C Mid Mount Surface Mount Contacts (USBMM)

From: £1.21
Copied to clipboard
  • Gen 2 10Gbps data rate
  • Mid Mount
  • Surface mount contacts
  • 10K mating cycles
  • 5A current rating for VBUS
  • High temperature plastic, reflow compatible
  • Backward compatibility with previous USB versions
  • Tape and reel packaging
Part No. Stock Qty 1200+ Qty
KUSBX-MM-CS1-B30-TR
1200 in stock £1.21
Standard delivery 12 - 14 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Housing: Black Hi-Temp Thermoplastic UL94V-0

Shield: Nickel plated Stainless Steel

Contact: Copper Alloy

Contact Plating: 30µ Gold on contacts, Tin plated solder tails.

Underplate: Nickel

Insertion Force: 5N- 20N

Withdrawal Force: 6N - 20N

Operating Temp: -55°C to +105°C

Part of Kycon's USB series, this mid mount USB 3.1 Type C female port connector enhances their Type C product line. With a 10Gbps data rate, USB 3.1 Gen 2 can handle significantly faster data transfer than the standard USB 2.0 and 3.0 products. The mid mount option minimizes its board footprint to offer a design solution where space is a concern, and is backward compatible with USB 3.0 and 2.0 to offer maximum design versatility.
