| Part No. | Stock Qty | 500+ | 1000+ | 5000+ | Qty |
|---|---|---|---|---|---|
|
1522 03
100pcs Pack |
Standard delivery 50 - 52 working days * |
£1.25 | £1.06 | £0.99 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Environmental conditions
Temperature range: -10 °C/+50 °C
Materials
Insulating body: PA, HB according to UL94
Contact: Cu alloy, nickel-plated
Housing: Cu alloy, nickel-plated
Bend protection sleeve: PVC
Mechanical data
Mating cycles: 3000
Insertion force: 4–20 N *1
Withdrawal force: 4–20 N *2
1) measured with a gauge plug
2) measured with a gauge plug
Connectable conductors for solder area
Cable diameter: 4 mm
Electrical data (at Tamb 20 °C)
Contact resistance: ≤ 50 mΩ
Rated current: 1 A
Rated voltage: 12 V DC
Rated impulse voltage: 500 V/60 s
Lumberg jack connectors, mating compatible acc. to JISC 6560, three sizes, mono and stereo. Wide range of cable and chassis parts. For signal currents up to 2A.

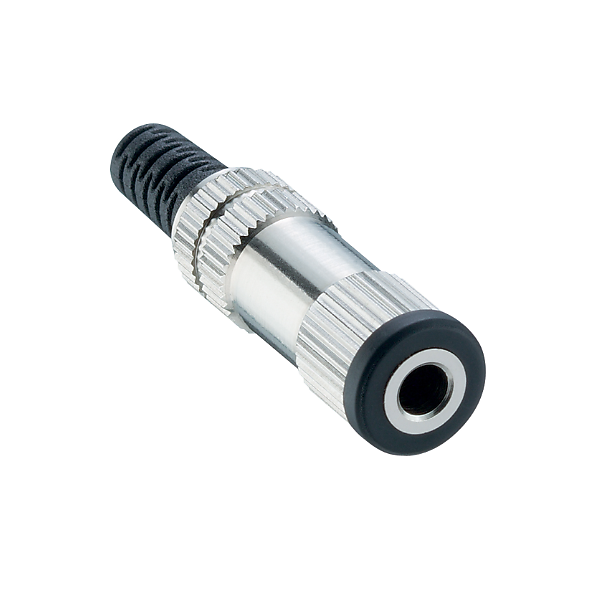

1522 03 is a jack socket acc. to JIS C 6560 JC35J2A, 3.5 mm, 2 poles/mono, straight version, with metal housing, bend protection and solder terminals.
