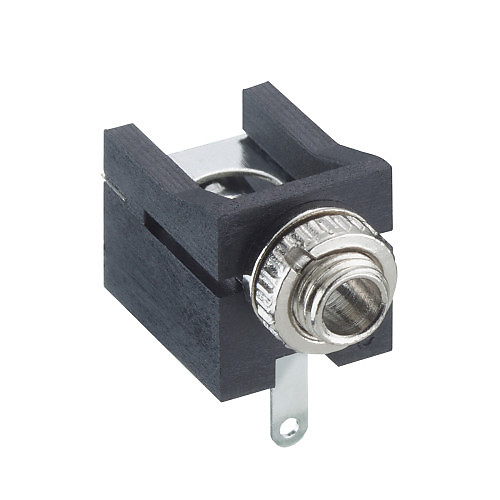

1501 09 Lumberg 2.5mm, 2 Pole Jack, Chassis PCB Socket

1501 09 Lumberg 2.5mm, 2 Pole Jack, Chassis PCB Socket (1509)

From: £0.83

Jack chassis socket acc. to JIS C 6560 JC25P2B
2.5 mm, 2 poles/mono
Angular version, with break contact and solder eyes,
For printed circuit boards,
For back side mounting

Part No.	Stock Qty	500+	Qty
1501 09 2.5mm, 2 Pole Jack Socket	Standard delivery 10 - 12 working days *	£0.83	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Environmental conditions

Temperature range: -20 °C/+60 °C

Materials

Insulating body: PBT, V-0 according to UL94

Contact: CuZn/steel, nickel-plated

Mechanical data

Mating cycles: 5000

Insertion force: 2.9–19.6 N

Withdrawal force: 2.9–19.6 N

Electrical data (at Tamb 20 °C)

Contact resistance: 30 mΩ

Rated current: 1 A

Rated voltage: 16 V DC

RoHS Compliant

Lumberg 15 Series Jack connectors, mating compatible acc. to JISC 6560, three sizes, mono and stereo. Wide range of cable and chassis parts. For signal currents up to 2 A.
