Valcon

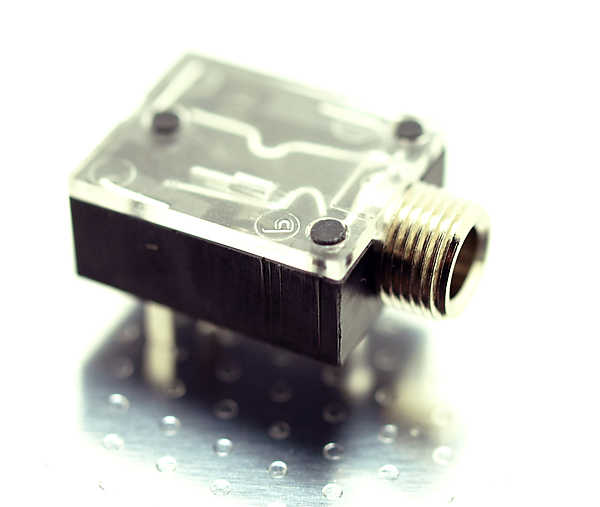

UJ-3508 - Valcon 3.5Ø Stereo Horizontal Mount Phono Jack (UJ358)

From: £0.33
Copied to clipboard
  • Through Hole Horizontal PCB Type
  • RoHS compliant
  • 4 Schematic options available (-N option is without screwthread & nut)​
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
UJ-3508-A-R
6116 in stock £0.60£0.51£0.41£0.33
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Insulator Material: LCP UL94V-0 Black
Contact Material: Copper Alloy
Contact Plating: Tin over Ni plating
DWV: 500V AC  for 1 minute
Insulation Resistance: 100MΩ min. @ 250V DC
Contact Resistance: 30mΩ Max. / 60mΩ Max (after durability test)
Operating Temperature: -25°C to +80°C
