| Part No. | Stock Qty | 10+ | 100+ | 500+ | 1000+ | 5000+ | Qty |
|---|---|---|---|---|---|---|---|
|
VTB350V-2P-B
2 Pos.Black |
2767 in stock | £0.29 | £0.225 | £0.185 | £0.15 | £0.125 | |
|
VTB350V-3P-B
3 Pos.Black |
2523 in stock | £0.43 | £0.32 | £0.27 | £0.22 | £0.18 | |
|
VTB350V-4P-B
4 Pos.Black |
4180 in stock | £0.28 | £0.28 | £0.28 | £0.28 | £0.24 | |
|
VTB350V-6P-B
6 Pos. Black |
Standard delivery 20 - 22 working days * |
£0.58 | £0.58 | £0.58 | £0.58 | £0.46 | |
|
VTB350V-6P-G
6 Pos. Green |
6 in stock | £0.48 | £0.48 | £0.48 | £0.48 | £0.385 |
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Screw Material: M2.0 Steel (Zinc Plated) – Slot Head
Wire Guard: Phosphor Bronze (Ni-plated)
Reed Material: Copper Alloy, Nickel-plated or Stainless Steel
Pin Header: Copper Alloy, Tin-plated
Insulation Material: Black/Green PA66 (UL94V-0 Flame Retardant)
Rated Current: 7A
Voltage Rating: 300V (UL) / 130V (IEC)
Insulation Resistance: 500MΩ/DC500V
Contact Resistance: 20mΩ Max
Withstanding Voltage: AC1250V/1 Min
Wire Range: 24-18AWG (0.2mm²-1.0mm²)
Operating Temperature: -40°C to +105°C
Soldering Temperature: 250°C ± 5 sec
Torque: 0.2Nm (1.77Lb.in)
Strip Length: 5-6mm

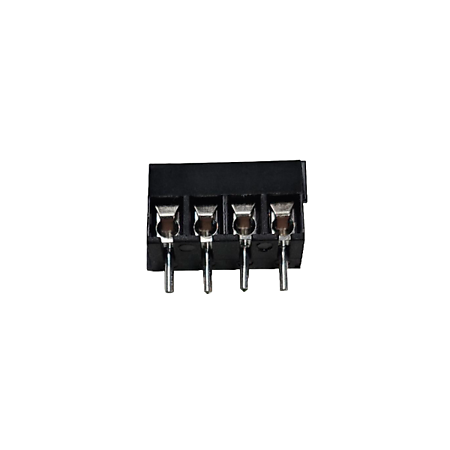

The Valcon VTB Series 3.50mm Pitch 7A Interlocking Terminal Block is a cost-effective and space-saving solution for custom wire-to-board connections.
Designed for fast and flexible assembly, these terminal blocks can be clipped together to create custom lengths, eliminating the need for multiple part numbers. The UL-approved flame-retardant housing ensures safety and durability, while the secure wire guard and phosphor bronze contacts guarantee a strong electrical connection.
Fast Stock Available – Orders can be quickly configured to your required size.

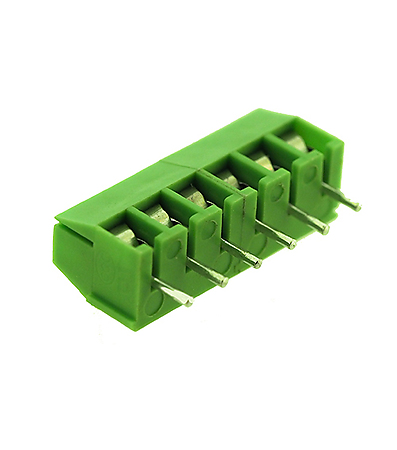

Available in standard black or green housing colors.
Perfect for industrial, automation and power distribution applications.
Toby can interlock your requirement from 2 pins upwards, turning zero stock into next day delivery, Contact Toby now to make your FAST STOCK requirement.
For bulk orders, technical drawings, or custom configurations, contact Team Toby today!
