Valcon

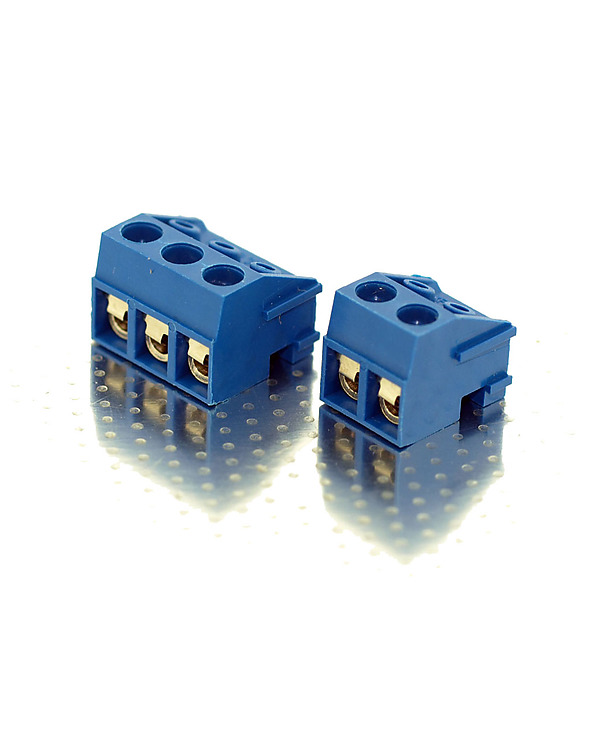

VTB332 - Valcon 5mm Pitch, 15 Amp Interlocking Terminal Block - Fast Stock (VTB32)

From: £0.09
Copied to clipboard

>> FAST STOCK PRODUCT >>

Ask us to make your required size for Fast Stock delivery - Click here now!

  • Blue Plastic Interlocking blocks
  • Sizes 2 & 3 Modular Type
  • Screw Type
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
VTB332-2P-P
1x2 positions
2499 in stock £0.125£0.115£0.105£0.09
When ordering more than in stock, please contact us to confirm delivery time.
VTB332-3P-P
1x3 positions
696 in stock £0.19£0.17£0.16£0.135
When ordering more than in stock, please contact us to confirm delivery time.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Screw Material: Steel (Zinc plated) M2.5 Slot Head

Wire Guard: Phosphor Bronze (Ni plated)

Insulation Material: PA66 (UL94V-0)

Rated Current: 16A

Volatge Rating: 300V AC

Insulation Resistance: 5000 MΩ Min.(DC1000V)

Contact Resistance: 20 mΩ

Withstanding Voltage: AC1500V/1 Minute

Operating Temperature: -40°C to +105°C Max.

Soldering Temp: +250°C for 5 seconds

Mechanical Torque: 0.4Nm (3.6lb.in)

Applicable Wire Size: From 16 to 28 AWG (1.5mmsq.)

Wire Strip Length: 4.5 - 5mm

RoHS compliant

Toby can interlock your requirement from 2 pins upwards, turning zero stock into next day delivery, Contact Toby now to make your FAST STOCK requirement.
