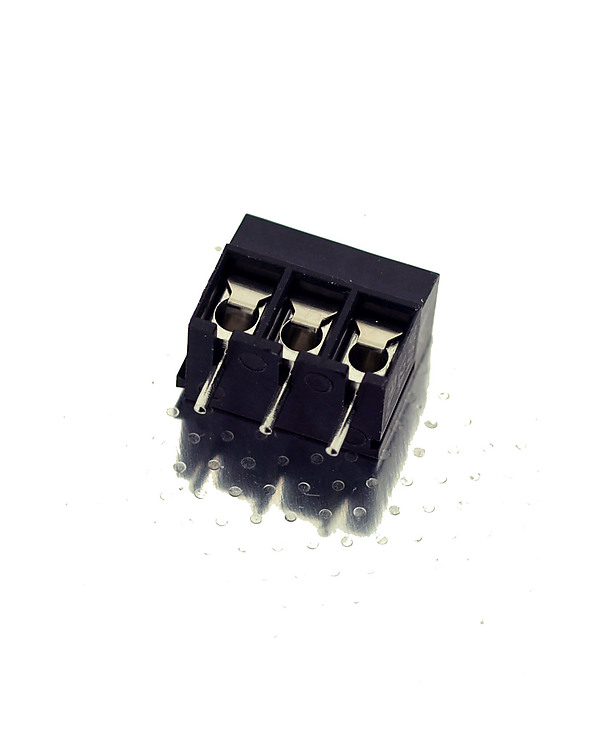

VTB301 - Valcon 5mm Pitch, 12 Amp Interlocking Terminal Block - Fast Stock (VTB3)

From: £0.07
Copied to clipboard

>> FAST STOCK PRODUCT >>

Ask us to make your required size for Fast Stock delivery - Click here now!

  • Valcon Low Cost Range
  • Interlocking type - can be made into longer sizes
  • We can produce any size from 02 pos upwards.
  • Black Plastic with M2.5 Screw
  • UL Approved
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
VTB301V-10P-B
1x10 positions
10 in stock £0.475£0.475£0.475£0.475
When ordering more than in stock, please contact us to confirm delivery time.
VTB301V-12P-B
1x12 positions
10 in stock £0.51£0.51£0.51£0.51
When ordering more than in stock, please contact us to confirm delivery time.
VTB301V-2P-B
1x2 positions
31952 in stock £0.10£0.09£0.08£0.07
When ordering more than in stock, please contact us to confirm delivery time.
VTB301V-3P-B
1x3 positions
1672 in stock £0.14£0.13£0.12£0.10
When ordering more than in stock, please contact us to confirm delivery time.
VTB301V-4P-B
1x4 positions
1790 in stock £0.20£0.18£0.16£0.14
When ordering more than in stock, please contact us to confirm delivery time.
VTB301V-5P-B
1x5 positions
862 in stock £0.25£0.225£0.205£0.18
When ordering more than in stock, please contact us to confirm delivery time.
VTB301V-6P-B
1x6 positions
625 in stock £0.29£0.27£0.25£0.21
When ordering more than in stock, please contact us to confirm delivery time.
VTB301V-7P-B
1x7 positions
50 in stock £0.34£0.31£0.29£0.25
When ordering more than in stock, please contact us to confirm delivery time.
VTB301V-8P-B
1x8 positions
Standard delivery
2 - 4 working days *
Contact UsContact UsContact UsContact Us
When ordering more than in stock, please contact us to confirm delivery time.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Screw Material: Steel (Zinc plated) M2.5 Slot Head

Contact Material(Clamp): Brass Ni plated

PCB Pin Material: Brass (Tin plated)

Insulation Material: PBT (UL94V-0)

Rated Current: 12A

Volatge Rating: 300V AC

Insulation Resistance: 5000 MΩ Min.(DC1000V)

Contact Resistance: 20 mΩ

Withstanding Voltage: AC1500V/1 Minute

Operating Temperature: -30°C to +120°C Max.

Soldering Temp: +250°C for 5 seconds

Mechanical Torque: 0.4Nm (3.6lb.in)

Applicable Wire Size: From 14 to 22 AWG (2.5mmsq.)

Wire Strip Length: 4.5 - 5mm

RoHS Compliant

Toby can interlock your requirement from 2 pins upwards, turning zero stock into next day delivery, Contact Toby now to make your FAST STOCK requirement.

This low cost terminal block from Toby's Valcon range, can be interlocked to make up longer lenghts. On a 5mm pitch this 12AMP terminal block is a perfect PCB power solution.
