| Part No. | Stock Qty | 1+ | 500+ | 1000+ | 5000+ | Qty |
|---|---|---|---|---|---|---|
|
KLDX-0202-A-LT
|
755 in stock | £0.53 | £0.53 | Contact Us | Contact Us | |
|
KLDX-0202-AP-LT
|
Standard delivery 12 - 14 working days * |
Contact Us | £0.53 | £0.53 | £0.53 | |
|
KLDX-0202-B-LT
|
Standard delivery 12 - 14 working days * |
Contact Us | £0.85 | £0.64 | £0.56 | |
|
KLDX-0202-BP-LT
|
Standard delivery 12 - 14 working days * |
Contact Us | £0.53 | £0.53 | £0.53 |
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Performance Specifications
Materials and Finish
Body: PBT Thermoplastic, UL94V-0 Rated, Color Black
Center Pin: Brass, Nickel Plated
Contact #1: Brass, Tin Plated
Contact #2: Phosphor Bronze, Tin Plated
Contact #3: Brass, Tin Plated
Electrical Characteristics
Rated Current: 3.5A
Rated Voltage: 24V DC
Insulation Resistance:
50 Megohms Min. at 100 or 200V DC for 1 Minute
Mechanical Characteristics
Durability Test: 5000 Cycles
Insertion Force: 0.3kg - 2.0kg
Extraction Force: 0.3kg - 2.0kg
Operating Temperature: -25˚C to +85˚C

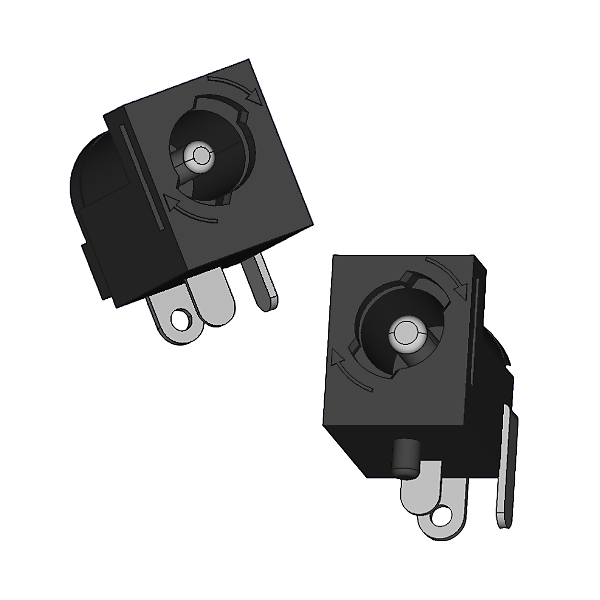

These Kycon Power sockets have a locking feature, recommended to be used with Kycon locking plugs:
KLDX-PA-0202-A-LT, KLDX-PA-0202-B-LT
If used with non-locking plug, tuning fork design is required.
