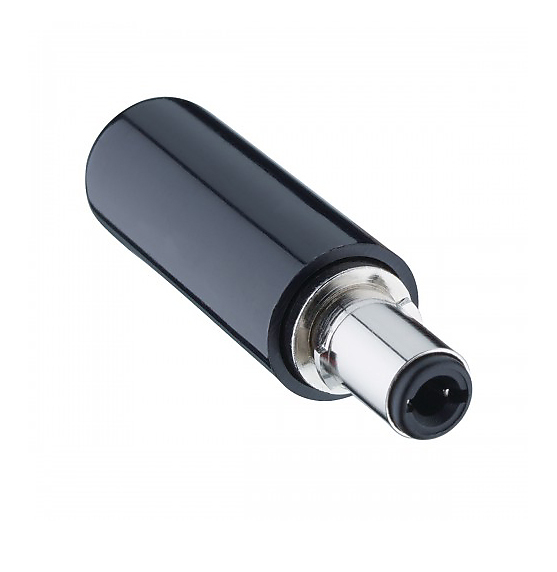

1634 01 Lumberg Straight Power Supply Plug (63401)

From: £1.16

Straight power supply plug
With bayonet lock
With solder eyes
2.5mm inner diameter
Mates with Lumberg Socket 1613 23

Part No.	Stock Qty	100+	500+	1000+	Qty
1634 01 100pcs Pack	Standard delivery 8 - 10 working days *	£1.24	£1.19	£1.16	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Environmental conditions

Temperature range:-20 °C/+70 °C

Materials

Insulating body:POM

Contact:Cu alloy/steel, nickel-plated

Housing:ABS

Mechanical data

Outer diameter:5.5 mm

Inner diameter:2.5 mm

Connectable conductors for solder area

Cable diameter:5 mm

Electrical data (at Tamb 20 °C)

Rated current:2 A

Rated voltage:24 V DC

Rated impulse voltage:500 V/60 s

Mates With

1613 23

Power supply connectors e.g. according to IEC 60130-10, DIN 45323 and JEITA RC-5320A. Wide range of parts, 1.7–7.0 mm diameter. For low load currents up to 3 A at 34 V DC, individual types up to 10 A.

Lumberg 1634 01 is a power supply plug, straight version, with bayonet lock, with solder eyes
