| Part No. | Stock Qty | 10+ | Qty |
|---|---|---|---|
|
1613 23
2.35mm Centre Pin |
213 in stock | £0.59 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Environmental conditions
Temperature range -20 °C/+70 °C
Materials
Insulating body PC, V-2 according to UL94
Contact Cu alloy, nickel-plated/tin-plated
Mechanical data
Diameter opening 5.7 mm
Diameter center pin 2.35 mm
Mating cycles ≥ 5000
Insertion force 5–20 N
Withdrawal force 4–15 N
Electrical data (at Tamb 20 °C)
Contact resistance ≤ 30 mΩ
Rated current 1 A
Rated voltage 12 V DC
Rated impulse voltage 500 V/60 s
Insulation resistance ≥ 100 MΩ
Mates With
Lumberg power supply connectors e.g. according to IEC 60130-10, DIN 45323 and JEITA RC-5320A. Wide range of parts, 1.7–7.0 mm diameter. For low load currents up to 3 A at 34 V DC, individual types up to 10 A.

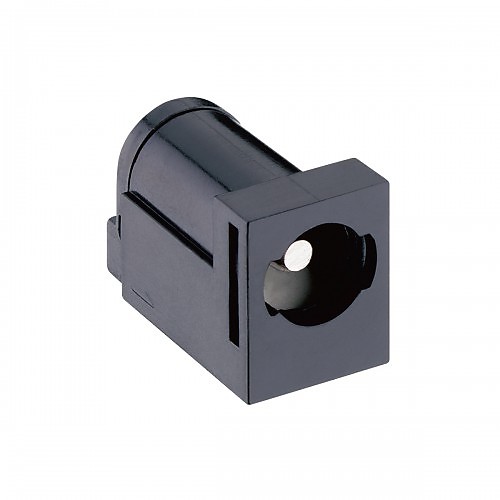

1613 23 is a Lumberg power supply chassis socket, angular version, with bayonet lock, with break contact, for printed circuit boards
