B15 - Valcon 1.27mm x 2.54mm Single or Dual Row Socket Strip, 4.6mm Profile (B15)

From: £0.145

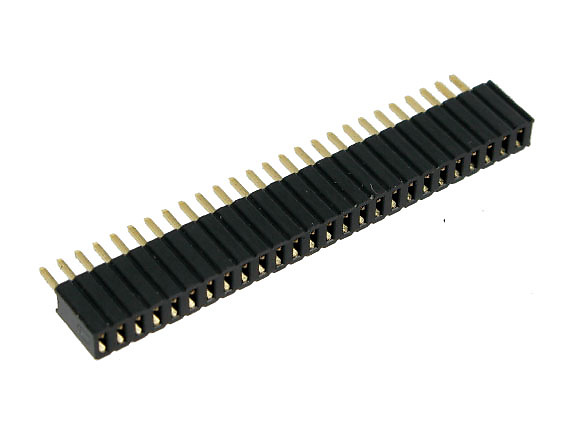

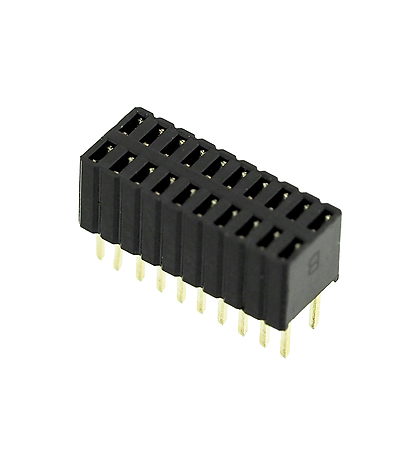

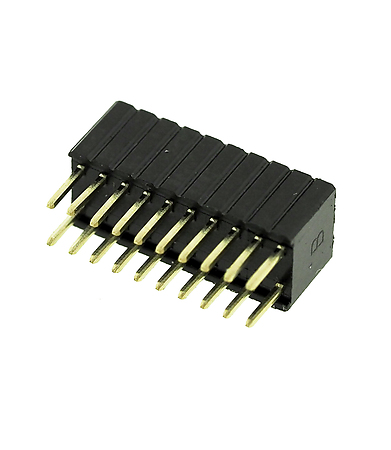

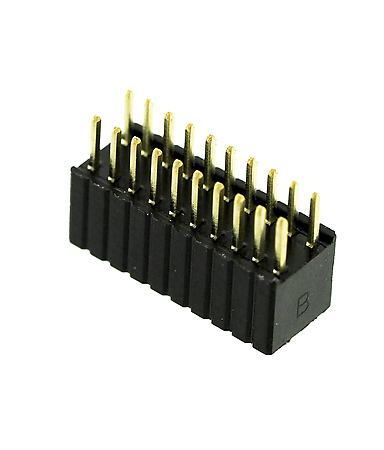

  • Single row (1.27mm pitch) and dual row (1.27mm X 2.54mm pitch) socket
  • 4.6mm PCB profile
  • Total number of contacts 02 to 50 single row - 04 to 100 dual row
  • Gold flash plated contacts as standard
  • 2.4mm or 3mm solder pin option
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
B15-1x10-BGB1G
200 in stock £0.49£0.41£0.32£0.27
B15-1x11-BGB1G
Standard delivery
15 - 17 working days *
£0.54£0.45£0.36£0.30
B15-1x12-BGB1G
Standard delivery
15 - 17 working days *
£0.59£0.49£0.39£0.32
B15-1x20-BGB1G
Standard delivery
15 - 17 working days *
£0.78£0.65£0.52£0.43
B15-1x5-BGA1G
89 in stock £0.26£0.22£0.17£0.145
B15-1x5-BGB1G
Standard delivery
15 - 17 working days *
£0.26£0.22£0.17£0.145
B15-2x10-BGB1-G
Standard delivery
15 - 17 working days *
£0.80£0.67£0.54£0.45
B15-2x4-BGB1-G
Standard delivery
15 - 17 working days *
£0.40£0.34£0.27£0.22
B15-2x5-BGB1-G
Standard delivery
15 - 17 working days *
£0.46£0.38£0.31£0.255

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Insulator : Nylon 6T, glass reinforced, rated UL 94V-0

Contact : Phosphor Bronze

Electrical Current Rating : 1 Amp

Contact Resistance : 30mΩ max.

Insulation Resistance : 1000MΩ min.

Dielectric Withstanding Voltage : 250V AC for 1minute

Operating Temperature : -40°C to +105°C

RoHS compliant
