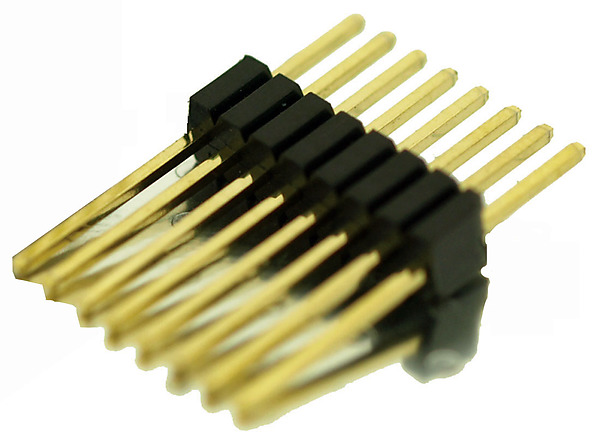

QR1 - Valcon 1.27mm Flexible Micro Header, 2.5mm Profile (QR1)

  • 1.27mm pitch single row through board PCB mount
  • Gold flash plated contacts as standard
  • 2.5mm insulator profile
  • No. of contacts 02 to 50 pins
  • Specify your own pin dimensions
  • MOQ's may apply
  • Contact sales@toby.co.uk with your requirement
Part No. Stock Qty Price Qty
QR1-03S1-G-144-041
Standard delivery
15 - 17 working days *
Contact Us
QR1-08S1-G-074-042
Standard delivery
15 - 17 working days *
Contact Us
QR1-09S1-G-137-047
Standard delivery
15 - 17 working days *
Contact Us
QR1-12S1-G-039-039
Standard delivery
15 - 17 working days *
Contact Us
QR1-14S1-G-137-047
Standard delivery
15 - 17 working days *
Contact Us
QR1-20S1-G-039-039
Standard delivery
0 - 2 working days *
Contact Us

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Contact Material: Phosphor Bronze

Contact Plating: Gold Flash Plated

Body: LCP (GRP) UL94V-0 Rated Black

Rated Current: 1.75A @ 80°C Ambiant Temp.

DWV AC500V (1 minute)

Operating Temperature: -55°C to +125°C

RoHS compliant
