| Part No. | Stock Qty | 500+ | 1000+ | 5000+ | Qty |
|---|---|---|---|---|---|
|
2410-12
100pcs Tray |
Standard delivery 10 - 12 working days * |
£0.53 | £0.48 | £0.42 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Temperature range: -55 °C/+85 °C
Materials:
Insulating body: PBT, V-0 according to UL94
Contact spring: CuZn, gold-plated
Housing: Steel, nickel-plated
Mechanical data:
Mating cycles: 1500
Insertion force: ≤ 35 N
Withdrawal force: ≥ 10 N
Electrical data (at Tamb 20 °C):
Contact resistance: ≤ 30 mΩ
Rated current: ≤ 1 A
Rated voltage: 30 V DC
Rated impulse voltage: 500 V
Universal serial bus interfaces acc. to USB 2.0 and 3.0 specification for transmission rates of up to 480 Mbit/s and 5 gbit/s respectively and digital video interfaces acc. to IEEE 1394 for up to 800 Mbit/s, also known as FireWire or i.Link. For signal and low load currents up to 1 A.

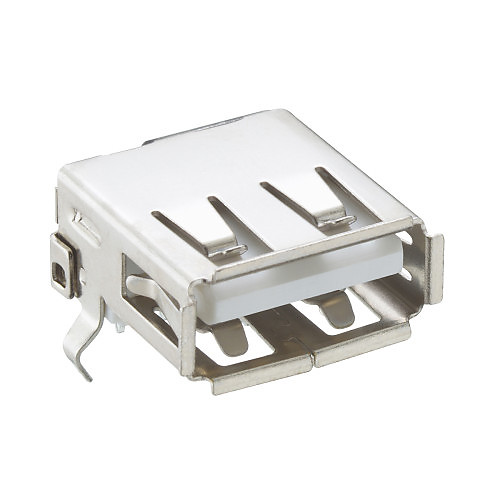

Lumberg 2410 12 is a USB 2.0 chassis socket type A, angular version, for printed circuit boards
