DVI-DP-29-C-G-HN-4-FS Valcon Dual Port Stacked DVI PCB Conn

DVI-DP-29-C-G-HN-4-FS Valcon Dual Port Stacked DVI PCB Conn (DVIFS)

From: £8.15

Fully Shielded
DVI-I over DVI-I
29 pin over 29 pin connectors
Supplied with loose packed 4-40unc Hex nuts (x4)
Through board mount with PCB Boardlocks

Part No.	Stock Qty	35+	525+	1015+	5075+	Qty
DVI-DP-29-C-G-HN-4-FS 35pcs Tray	175 in stock	£11.25	£10.87	£9.79	£8.15	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Upper and lower connector housings; PBT, UL 94V-0 Ivory Colour

Terminals; Copper Alloy, Gold plate over nickel contact area, Tin plate over solder area

Shells: Nickel plated SPCC

Boardlocks: Tin plated copper alloy

Bracket: Nickel plated zinc alloy

Screw: Nickel plated copper alloy

Current Rating: 1.5A per contact

DWV: 500V DC (RMS)

Insulation Resistance: 1000MΩ min.

Contact Resistance: Upper 30mΩ Max. | Lower 20mΩ Max.

Operating Temperature: -55°C to +85°C

Mating: 4.5 Kgf Max.

Unmating Force:1.0 Kgf Min

RoHS Compliant

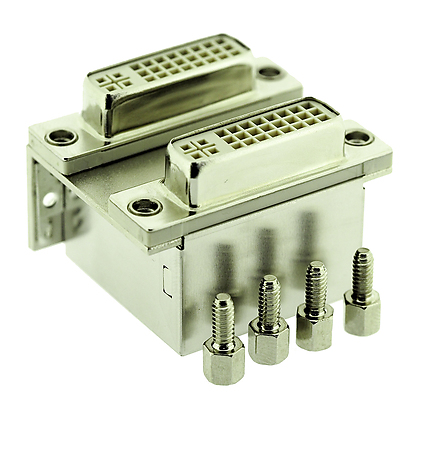

Valcon fully shielded dual port DVI-I over DVI-I female right angle connector with PCB board locks. 4 x 4-40UNC Hex screws supplied with the connector.
