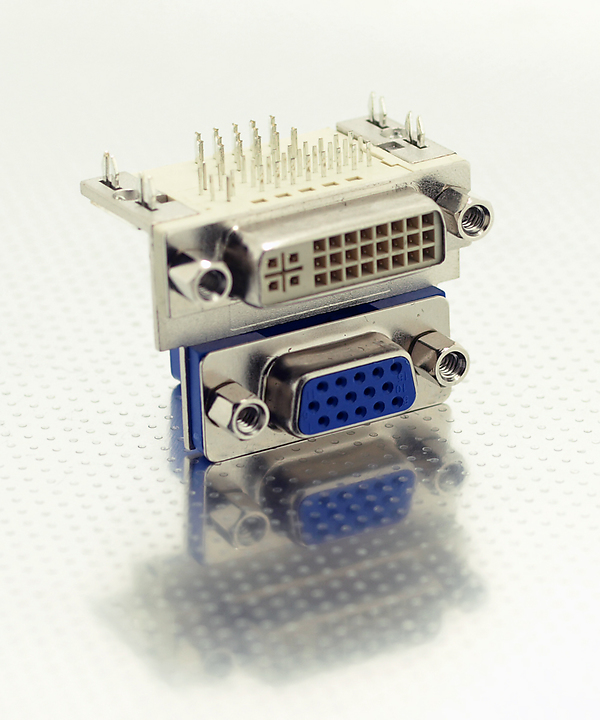

G2056 - Valcon VGA Over DVI Dual Port PCB Mount Receptacle (G2056)

From: £2.53
Copied to clipboard
  • Through hole PCB mount
  • 15 pin high density VGA D-Type over 29 pin DVI
  • With PCB boardlocks and front hex nuts
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
830 in stock £4.57£3.80£3.05£2.53
Standard delivery 15 - 17 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Insulator Material: PBT UL94V-0 Blue (VGA)PA6T Ivory (DVI)

Contact Material: Copper Alloy

Shell: SPCC Copper Alloy - Ni plated

Contact Plating: Gold flash over Ni underplate (mating contacts)

Solder Tail Plating: Tin over Ni

Current Rating: 3A per contact

DWV: 1000AV AC for 1 minute Voltage: 40 VAC (RMS) Max.

Insulation Resistance: 5000MΩ min.

Contact Resistance: 25mΩ Max.

Operating Temperature: -55°C to +85°C

Mating/Unmating Force: 4.5 Kgf Max. / 1.0 Kgf Min
