| Part No. | Stock Qty | 500+ | 1000+ | 10000+ | Qty |
|---|---|---|---|---|---|
|
1502 02
500pcs Pack |
Standard delivery 8 - 10 working days * |
£2.17 | £2.02 | £1.90 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Environmental conditions
Temperature range: -10 °C/+50 °C
Materials
Insulating body: PBT GF, V-0 according to UL94
Contact spring: Cu alloy, nickel-plated/gold-plated
Insulation: PVC
Housing: Cu alloy, nickel-plated
Hexagonal nut: steel, nickel-plated
Mechanical data:
Mating cycles: ≥ 5000
Insertion force: 3–30 N (4–40 N initial value) *1
Withdrawal force: 3–30 N (4–40 N initial value) *2
Electrical data (at Tamb 20 °C)
Contact resistance: ≤ 50 mΩ
Rated current: 1 A
Rated voltage: 12 V DC
Rated impulse voltage: 500 V/60 s
Lumberg jack connectors, mating compatible acc. to JISC 6560, three sizes, mono and stereo. Wide range of cable and chassis parts. For signal currents up to 2 A.

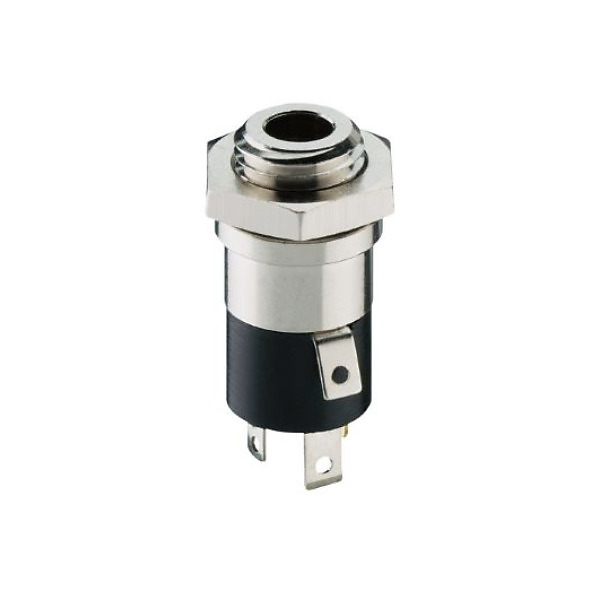

Lumberg jack chassis socket according to JEITA RC-5325A JC35C4A, 3.5mm, 4 poles/stereo, upright version, with solder eyes, for back side mounting.
