| Part No. | Stock Qty | 500+ | Qty |
|---|---|---|---|
|
1501 04
500pcs Pack |
Standard delivery 8 - 10 working days * |
£0.71 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Temperature range-20 °C/+70 °C2.
Insulating body PBT GF, V0 according to UL 94
Contact Cu alloy, tin-plated
Insertion force 5–20 N
Withdrawal force 4–20 N
Mating cycles ≥5000
Mating with jack connector KLS 134
Contact resistance ≤50 mΩ
Rated current 0.5 A
Rated voltage 34 V AC/DC
Test voltage 500 V/60 s
Insulation resistance ≥100 MΩ

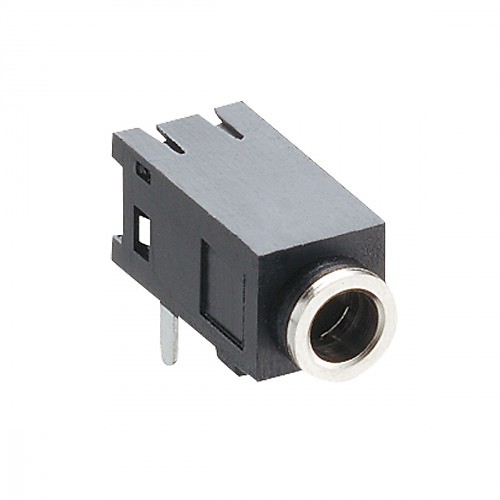

Lumberg Jack chassis socket acc. to JIS C 6560 JC25J3A, 2.5 mm, 3 poles/stereo, angular version, with metal collar, for printed circuit boards
