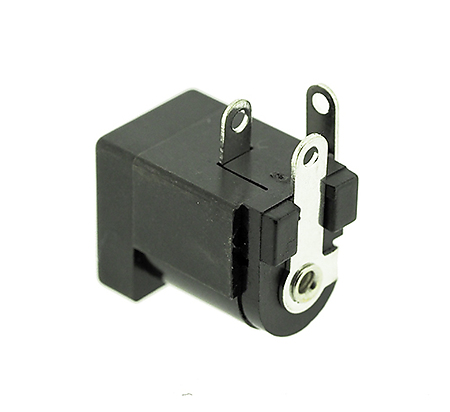

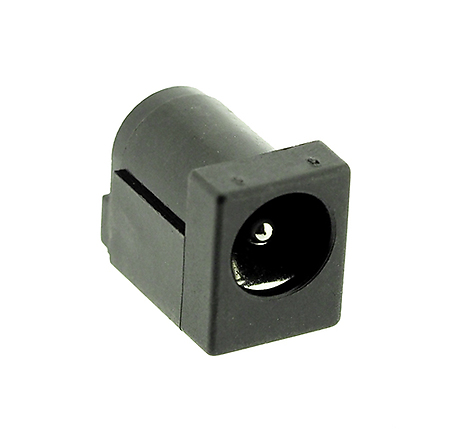

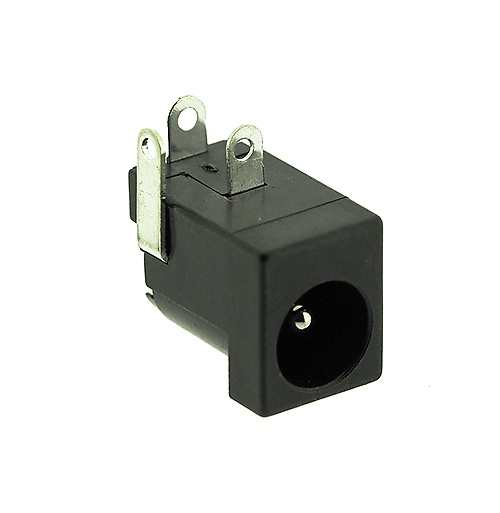

DC - Valcon Right Angle DC Power Jacks (DC001)

From: £0.12

Right angle PCB mount
2.1mm and 2.5mm pin diameters
5000 mating cycles

Part No.	Stock Qty	1+	100+	500+	1000+	Qty
DC-001-A-2.1mm-R Sold in multiples of 10	50344 in stock	£0.20	£0.16	£0.14	£0.12	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.
DC-001-B-2.5mm-R Sold in multiples of 10	11026 in stock	£0.20	£0.16	£0.14	£0.12	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

PBT Thermoplastic UL94V-0 (E59481)

Contact Material: Brass

Contact Plating: Tin over Nickel

Rating: DC24V at 3A

DWV: 500V AC for 1 minute

Insulation Resistance: 100MΩ min. @ 500V DC

Contact Resistance: 30mΩ or less

Operating Temperature: -25°C to +85°C

Solderability: +230°C for 3 seconds max.

Life test: 5000 cycles at 10~30 cycles/min.

Insertion/Withdrawal: 3.0Kgs max. / 0.3Kgs Min (per contact)

These Valcon DC power jacks are excellent, low cost, robust industry standard PCB power jacks. With 5000 mating cycles, these are a great value connector for your PCB power applications.
