| Part No. | Stock Qty | 100+ | 500+ | 1000+ | Qty |
|---|---|---|---|---|---|
|
1633 03
100pcs Pack |
Standard delivery 15 - 17 working days * |
£0.99 | £0.965 | £0.94 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Environmental conditions
Temperature range: -20 °C/+70 °C
Materials
Insulating body: POM
Contact: Cu alloy/Fe, nickel-plated
Housing: PE
Mechanical data
Outer diameter: 5.5 mm
Inner diameter: 2.1 mm
Connectable conductors for solder area
Cable diameter: 4 mm
Electrical data (at Tamb 20 °C)
Contact resistance: ≤ 30 mΩ
Rated current: 2 A
Rated voltage: 24 V DC
Rated impulse voltage: 500 V/60 s
Lumberg Power supply connectors e.g. according to IEC 60130-10, DIN 45323 and JEITA RC-5320A. Wide range of parts, 1.7–7.0 mm diameter. For low load currents up to 3 A at 34 V DC, individual types up to 10 A.

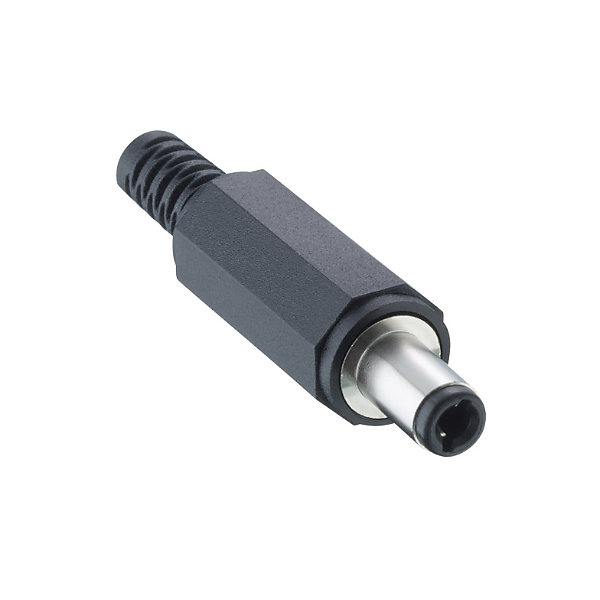

Lumberg 1633 03 is a power supply plug, straight version, with fork-shaped contact, with solder eyes and bend protection.
