| Part No. | Stock Qty | 200+ | 400+ | 1000+ | 2000+ | Qty |
|---|---|---|---|---|---|---|
|
1614-21
200pcs Pack |
Standard delivery 8 - 10 working days * |
£3.16 | £3.09 | £3.025 | £2.95 |
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Temperature range-40 °C/+85 °C
Insulating body PBT GF, V-0 according to UL94
Contact CuSn, nickel-plated
Housing CuZn, nickel-plated
Hexagonal nut CuZn, nickel-plated
Diameter opening 8.0 mm
Diameter insulation 5.4 mm
Diameter central hole 1.0 mm
Mating cycles 5000
Insertion force 2.9–29.4 N
Withdrawal force 2.9–29.4 N
Electrical data (at Tamb 20 °C)
Contact resistance ≤ 30 mΩ
Rated current 10 A
Rated voltage 42 V DC
Rated impulse voltage 500 V/60 s
Insulation resistance ≥ 100 MΩ
RoHS compliant

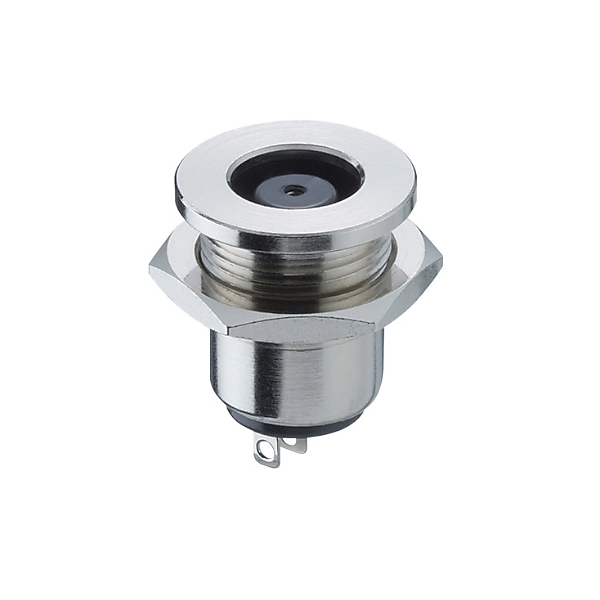

High quality Lumberg DC power chassis socket
