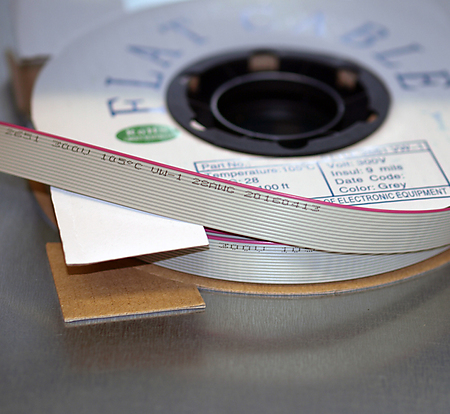

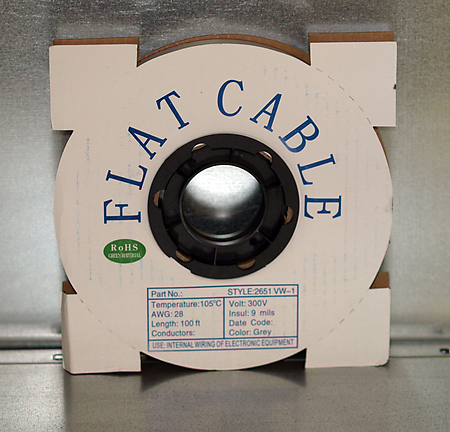

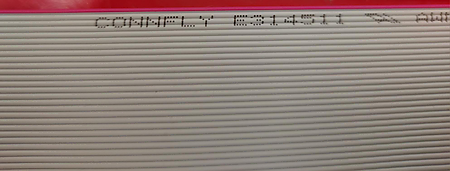

VFC - Valcon 1.27mm Pitch Flat Grey Ribbon Cable (for 2.54mm IDC)

VFC - Valcon 1.27mm Pitch Flat Grey Ribbon Cable (for 2.54mm IDC) (VFC)

From: £3.96

Use with 2.54mm IDC connectors
Grey with Polarising Stripe - UL Style 2651
UL Approved Product
Sold in 100ft reel (30.5m) full reel (1= 1 reel)
PLEASE CALL FOR VOLUME PRICING
Available as custom cable assemblies - contact us

Part No.	Stock Qty	1+	5+	10+	15+	Qty
VFC-06-305-G	Standard delivery 15 - 17 working days *	£5.53	£4.61	£4.26	£3.96	You have ordered more than we have in stock, Standard delivery 15 - 17 working days
VFC-09-305-G	25 in stock	£8.30	£6.92	£6.39	£5.93	You have ordered more than we have in stock, Standard delivery 15 - 17 working days
VFC-10-305-G	Standard delivery 15 - 17 working days *	£9.22	£7.69	£7.10	£6.59	You have ordered more than we have in stock, Standard delivery 15 - 17 working days
VFC-12-305-G	10 in stock	£11.07	£9.22	£8.51	£7.91	You have ordered more than we have in stock, Standard delivery 15 - 17 working days
VFC-14-305-G	49 in stock	£12.92	£10.76	£9.93	£9.22	You have ordered more than we have in stock, Standard delivery 15 - 17 working days
VFC-16-305-G	60 in stock	£14.75	£12.30	£11.35	£10.54	You have ordered more than we have in stock, Standard delivery 15 - 17 working days
VFC-20-305-G	50 in stock	£18.45	£15.37	£14.19	£13.18	You have ordered more than we have in stock, Standard delivery 15 - 17 working days
VFC-26-305-G	7 in stock	£23.98	£19.98	£18.45	£17.13	You have ordered more than we have in stock, Standard delivery 15 - 17 working days
VFC-34-305-G	12 in stock	£31.36	£26.13	£24.12	£19.08	You have ordered more than we have in stock, Standard delivery 15 - 17 working days
VFC-40-305-G	51 in stock	£36.89	£30.74	£28.38	£26.35	You have ordered more than we have in stock, Standard delivery 15 - 17 working days
VFC-50-305-G	14 in stock	£46.12	£38.43	£35.47	£32.94	You have ordered more than we have in stock, Standard delivery 15 - 17 working days
VFC-60-305-G	6 in stock	£55.34	£46.12	£42.57	£39.54	You have ordered more than we have in stock, Standard delivery 15 - 17 working days
VFC-64-305-G	4 in stock	£59.05	£49.19	£45.41	£42.16	You have ordered more than we have in stock, Standard delivery 15 - 17 working days

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

Technical Specification
More Info

Insulator Material: Polyvinyl Chloride (PVC)

Cable Colour: Grey with red stripe

Flammability Rating: UL-VW-1

Conductor Material: 28AWG (7*0.127) Stranded Tinned Copper

Voltage Rating: 300V

Impedance: 115Ω unblanced

Capacitance: 12.2 pF/ft

Inductance: 14uH/ft

Propagation Delay: 1.4ns/ft

Insulation Resistance: 1GΩM/min.

Operating Temperature: -20°C to +105°C

RoHS Compliant

Valcon low-cost IDC grey flat cable. UL approved product at a great low price. Excellent for IDC cable assemblies for use in computors, electronic exchanges, measurement control and various other electronics applications.
