| Part No. | Stock Qty | 1+ | 100+ | 500+ | 1000+ | Qty |
|---|---|---|---|---|---|---|
|
VCP-40-26GPIO-150MM
40 pos to 26 pos |
10 in stock | £1.77 | £1.48 | £1.18 | £0.99 | |
|
VCP-40-26GPIO-77MM
40 pos to 26 pos |
9 in stock | £0.99 | £0.99 | £0.99 | £0.99 |
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Insulator Material: PBT UL94V-0 rated
Contact Material: Phosphor Bronze
Current Rating: 1A Max.
Contact Plating: Gold flash over Ni underplate
DWV: 500V AC for 1 minute
Insulation Resistance: 3000MΩ min. @ 500V DC
Contact Resistance: 30mΩ Max.
Operating Temperature: -40°C to +105°C
RoHS compliant

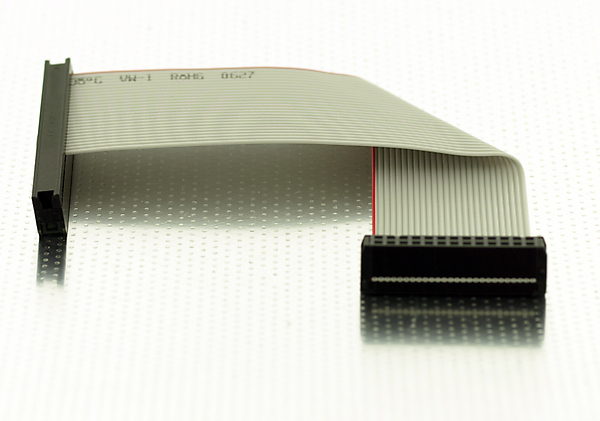

Valcon downgrade cable, for use with new an older versions of Raspberry Pi and accessories, 40 position socket to 26 position socket.
