TC-10-D6-76MM-G PIC
TC-10-D6-76MM-G PIC
TC-26-D-152mm-G Cat Pic

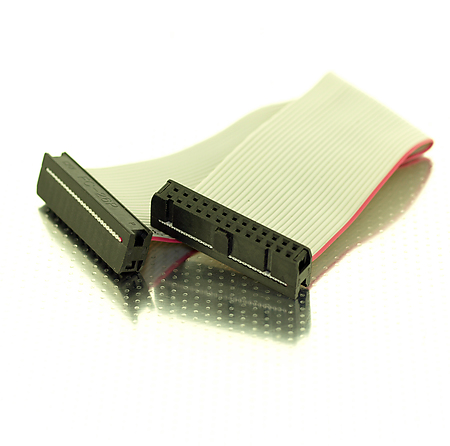

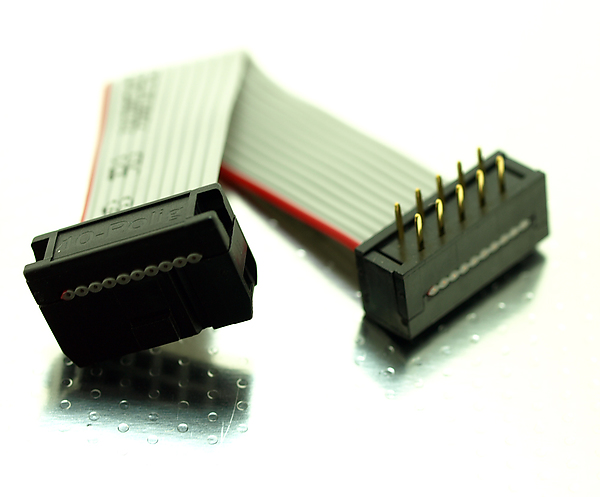

TC Series Valcon 2.54mm Pitch IDC Cable Assemblies - Fast Stock (TC)

From: £1.42
Copied to clipboard

>> FAST STOCK PRODUCT >>

We can assemble your IDC requirements for Fast Stock delivery >> Contact Toby Now!

Data sheet Technical Specification Related Products
Part No. Stock Qty 10+ 100+ 500+ 1000+ Qty
TC-10-D-150MM-G
Standard delivery
20 - 22 working days * 		Contact UsContact UsContact UsContact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-10-D-200MM-G
Standard delivery
2 - 4 working days * 		£2.22£1.85£1.69Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-10-D-200mm-SR-G
Standard delivery
3 - 5 working days * 		£2.22£1.85Contact Us£1.69
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-10-D-50MM-G
10 in stock £1.99£1.62£1.47Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-10-D-50MM-R1-G
Standard delivery
20 - 22 working days * 		Contact UsContact UsContact UsContact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-10-PP-100MM-G
10 in stock £2.09£1.66£1.49Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-10-T-100MM-G
10 in stock £2.28£1.81£1.61Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-12-D-120MM-R1-G
Standard delivery
2 - 4 working days * 		Contact UsContact UsContact UsContact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-12-PP-102MM-R-G
10 in stock £3.49£2.81£2.54Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-14-D-360MM-SR-G
Standard delivery
2 - 4 working days * 		£2.15£1.70£1.42Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-14-D-610MM-SR-G
Standard delivery
2 - 4 working days * 		£3.58£2.89£2.39Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-16-D-150MM-SR-G
10 in stock £2.42£1.88£1.67Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-16-PP-71MM-G
Standard delivery
2 - 4 working days * 		£2.68£2.09£1.87Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-16-PP-71MM-R-G
Standard delivery
2 - 4 working days * 		Contact UsContact UsContact UsContact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-16-T-105MM-R-SR-G
Standard delivery
2 - 4 working days * 		£2.54£1.98£1.76Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-20-D-300MM-G
10 in stock £2.78£2.21£2.01Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-20-PP-71MM-G
Standard delivery
2 - 4 working days * 		£3.10£2.35£2.11Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-20-PP-71MM-R-G
Standard delivery
2 - 4 working days * 		Contact UsContact UsContact UsContact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-26-D-140MM-NS-G
Standard delivery
15 - 17 working days * 		£2.65£2.15£1.90Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-26-D-152MM-G
472 in stock £2.78£2.22£1.98Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-30-S-500MM-R1-SR-G
Standard delivery
2 - 4 working days * 		£4.90£3.70£3.49Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-30-S-800MM-R1-SR-G
Standard delivery
2 - 4 working days * 		£6.15£4.95£4.74Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-34-T-150MM-SR-G
10 in stock £3.68£3.00£2.55Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-40-D-160MM-NS-G
Standard delivery
15 - 17 working days * 		£3.39£2.83£2.42Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-40-D-250MM-G
10 in stock £3.50£2.72£2.48Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
TC-40-D-700MM-R-G
Standard delivery
2 - 4 working days * 		£6.42£5.15£4.72Contact Us
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

UL Style : 2651

Operating Temperature : -20°C to +105°C

Flammability Rating : UL-VW-1

Voltage Rating : 300V Physical

Insulation Material : Polyvinyl Chloride (PVC)

Conductor : #28AWG (7*0.127) Stranded Tinned Copper #26AWG (7*0.16) Stranded Tinned Copper

Color : Grey With Red Polarised Edge

Electrical Impedance : 115Ω (Unbalanced)

Capacitance : 12.2 pF/ft.

Inductance : .14uH/ft.

Propagation Delay : 1.4 ns/ft.

Insulation Resistance : 1GΩ/M min

Insulator Material: PBT UL94V-0 rated

Contact Material: Phosphor Bronze

Current Rating: 1A Max.

Contact Plating: Gold flash over Ni underplate

DWV: 500V AC for 1 minute

Insulation Resistance: 3000MΩ min. @ 500V DC

Contact Resistance: 30mΩ Max.

Operating Temperature: -40°C to +105°C

RoHS compliant

Valcon TC series 2.54mm pitch assemblies are produced in house in low quantites, please contact us for large volume requirements. Component parts are available seperately for self assembly.

Custom made parts are non cancellable and non returnable. Advised lead times based on 100pcs and in stock material availability.
