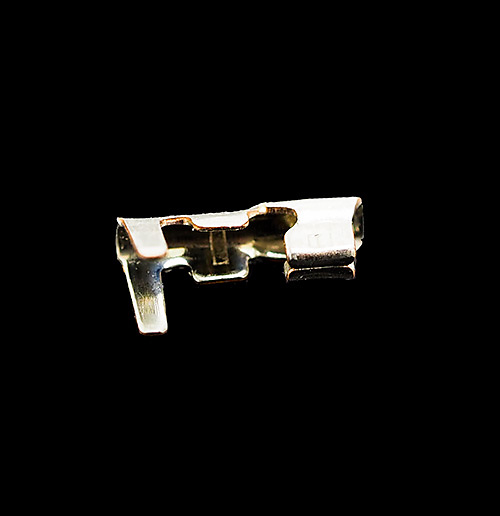

PH200 - Valcon 2mm Pitch Wire-to-board Loose Crimp Terminals - Fast Stock (P200L)

From: £0.04

>> FAST STOCK PRODUCT >>

Part No.	Stock Qty	100+	500+	1000+	Qty
PH200T-L	7672 in stock	£0.08	£0.065	£0.04	When ordering more than in stock, please contact us to confirm pricing and delivery time. There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

Crimp Material: Phosphore Bronze (0.2mm thickness)

Crimp Plating: Tin

Current Rating: 2 Amps

Rated Voltage: 250V AC/DC

DWV: 800V AC for 1 minute

Insulation Resistance: 1000 MΩ min.

Contact Resistance: 20 mΩ max.

Operating Temperature: -25°C to +85°C

Tolerance: ±0.25mm

Crimp Wire Size: AWG 26 ~30 only

Crimp Wire Insulation OD: 1.40mm Max

Toby can make your bespoke wire assembly, Contact Toby to find out more about how Toby can deliver >>Fast Stock Solutions>> for you.

2mm pitch crimp terminal for assembly with Valcon PH200 series housing, mates with Valcon PH200 series PCB headers. An excellent 2mm pitch crimp & poke wire-to-board system.
