Valcon

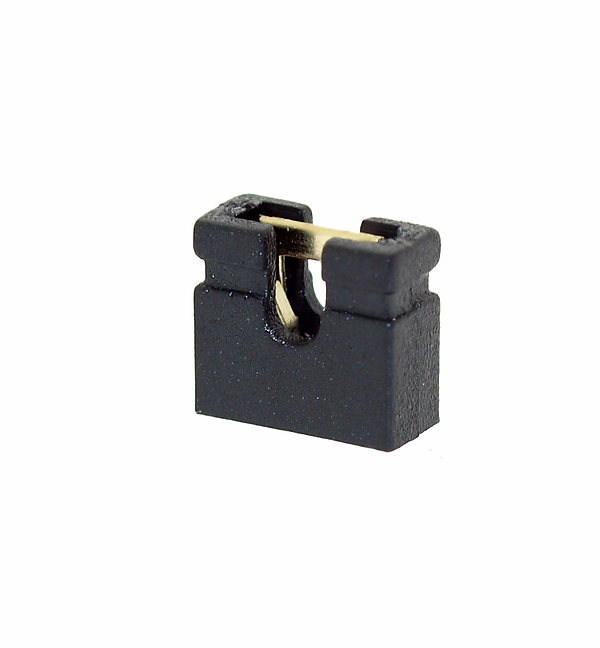

TSL-177-R-O Low Profile 2.54mm Pitch Jumper Link (TSL1)

From: £0.022
Copied to clipboard
  • 2.54mm pitch jumper link
  • Low 4.5mm profile
  • Mates with Valcon THx series
  • Open Top, black insulator
  • MOQ & multiples may apply
Part No. Stock Qty 1000+ 5000+ 10000+ 50000+ Qty
TSL-177-R-O
34908 in stock £0.035£0.0325£0.0275£0.022
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm pricing and delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Material Specification:

Contact Material: Phosphor Bronze

Contact Plating: Gold Flash Plated

Body: PBT UL94V-0 Rated

Rated Current: 3A

Withstanding Voltage - 650V AC

Insulation Resistance: 1000 MΩ Max.

Contact Resistance: 30mΩ max.

RoHS compliant

A low profile jumper link for Valcon THS and THD series 2.54mm pitch headers.
