TSL-200-G web PIC

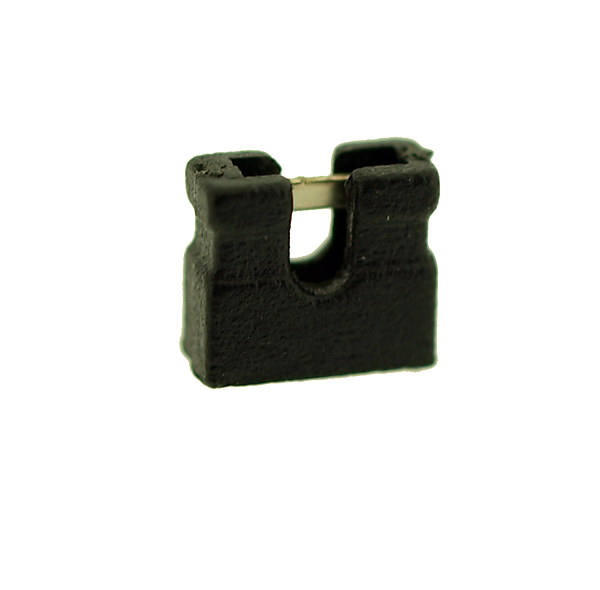

TSL - Valcon 2mm Jumper Link / Shunt (TSL2)

From: £0.02
  • 2mm pitch jumper link
  • Black or Red
  • 3.5mm Profile
  • Mates with 2mm headers
  • MOQ & multiples may apply
Part No. Stock Qty 100+ 1000+ 5000+ Qty
TSL-200-G (Black)
140156 in stock £0.045£0.035£0.02
TSL-200-G-R (Red)
18750 in stock £0.045£0.035£0.02

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Current Rating: 3 Amps

Insulator Resistance: 5000 Megaohms min.

Dielectric Withstanding: AC500 V

Operating Temperature: -40 ~ +105 Deg. C

Contact Material: Phosphor Bronze

Contact Plating: Gold Flash

Insulator Material: Polyester PBT - UL 94V-O

RoHS compliant
