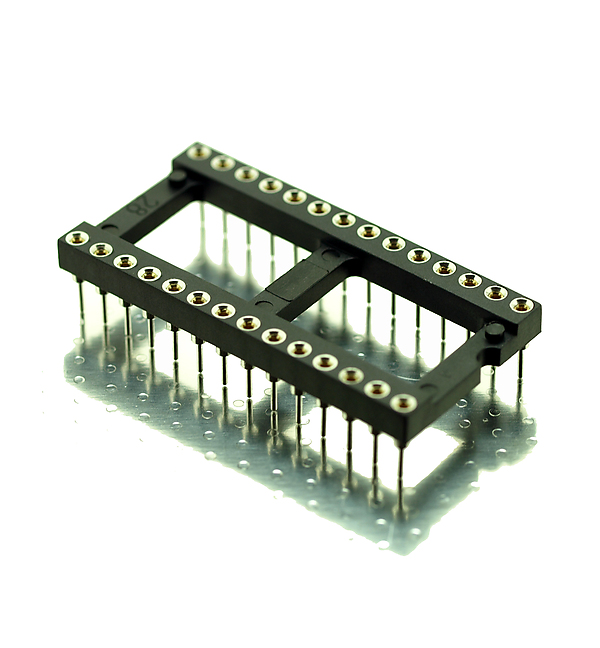

VSIC - Valcon Economy 2.54mm Pitch Quality Turned Pin IC Sockets (VSIC)

From: £0.06
  • 2.54mm pitch through hole PCB footprint
  • 10.16mm and 17.78mm cross pitch available
  • Tin plated shells with gold plated contacts
  • Sold in tube quantities only - please order in tube multiples
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
VSIC-D03-06-LF
Sold in multiples of 80
837 in stock £0.09£0.08£0.07£0.06
VSIC-D03-08-LF
Sold in multiples of 60
6030 in stock £0.12£0.11£0.09£0.08
VSIC-D03-14-LF
Sold in multiples of 34
2834 in stock £0.20£0.18£0.17£0.14
VSIC-D03-16-LF
Sold in multiples of 30
3695 in stock £0.22£0.20£0.19£0.16
VSIC-D03-18-LF
Sold in multiples of 26
2711 in stock £0.26£0.24£0.22£0.19
VSIC-D03-20-LF
Sold in multiples of 24
3284 in stock £0.29£0.25£0.23£0.20
VSIC-D03-24-LF
Sold in multiples of 20
2719 in stock £0.36£0.33£0.30£0.25
VSIC-D03-28-LF
Sold in multiples of 17
3697 in stock £0.40£0.35£0.33£0.27
VSIC-D04-22-LF
Sold in multiples of 22
2244 in stock £0.33£0.30£0.27£0.23
VSIC-D06-24-LF
Sold in multiples of 20
3664 in stock £0.35£0.32£0.29£0.24
VSIC-D06-28-LF
Sold in multiples of 17
11128 in stock £0.41£0.38£0.34£0.29
VSIC-D06-32-LF
Sold in multiples of 15
2195 in stock £0.46£0.42£0.39£0.33
VSIC-D06-40-LF
Sold in multiples of 12
2540 in stock £0.56£0.51£0.47£0.39

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Insulator Material: PBT UL94V-0 rated

Contact Material: Beryllium Copper (BeCu)

Gold plated Sleeve Material: Brass (Tin plated)

Current Rating: 1A

Dielectric Strength: 1000VRMS min. rated

Voltage: 100 VRMS / 150VDC

Insulation Resistance: 5000MΩ min. @ 500V DC

Contact Resistance: 10mΩ Max.

Operating Temperature: -55°C to +125°C

Operating Humidity Range: 75%

PBT Heat Resistance: Durability +160°C to +180°C (5 Seconds)

Insertion Force: Standard 300g Max.

Extraction Force: Standard test 60g min

RoHS compliant
