Samtec

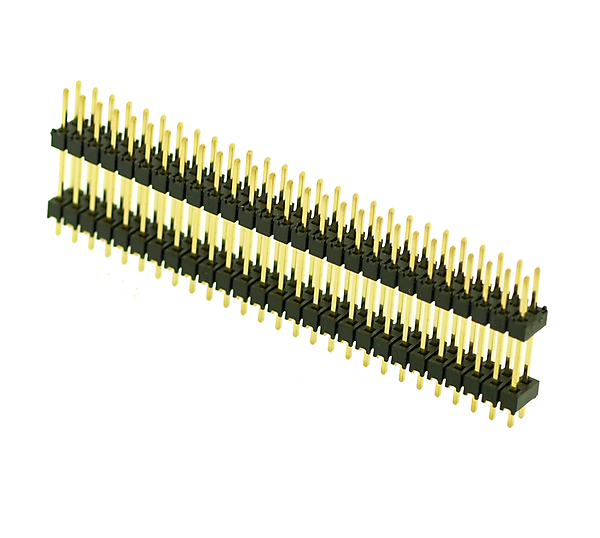

DW - Samtec 2.54mm Board Stacker 21.08mm Overall Pin Length (10) Fast Stock (DW10)

From: £0.029
Copied to clipboard

>> FAST STOCK PRODUCT >>

We can cut-to-size from 02 to 50 pins per row for Fast Stock delivery - Click here now!

  • Vertical through-hole, 2.54mm pitch, 0.635mm square post
  • Flex Stack design allows modified post height and body position in 0.13mm increments
  • For elevated board stacking application
Data sheet Technical Specification Related Products Product Configurator
Part No. Stock Qty Price Breaks Qty
DW-01-10-T-S-622   3D CAD
1x1 position 		Standard delivery
3 - 5 working days * 		1+: £0.0650+: £0.06100+: £0.05 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-02-10-F-D-400   3D CAD
Standard delivery
7 - 9 working days * 		1+: £0.2950+: £0.28100+: £0.26 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-02-10-F-D-452   3D CAD
2x2 positions 		Standard delivery
3 - 5 working days * 		1+: £0.2950+: £0.28100+: £0.26 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-02-10-F-S-330   3D CAD
Standard delivery
7 - 9 working days * 		1+: £0.1450+: £0.13100+: £0.13 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-02-10-L-D-460-LL   3D CAD
Standard delivery
7 - 9 working days * 		1+: £0.4150+: £0.40100+: £0.38 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-02-10-S-D-400   3D CAD
Standard delivery
7 - 9 working days * 		1+: £0.5350+: £0.51100+: £0.48 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-02-10-T-S-625   3D CAD
Standard delivery
7 - 9 working days * 		1+: £0.1150+: £0.11100+: £0.11 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-02-11-F-D-394   3D CAD
Standard delivery
7 - 9 working days * 		1+: £0.3050+: £0.29100+: £0.27 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-03-10-F-D-450   3D CAD
Standard delivery
7 - 9 working days * 		1+: £0.4250+: £0.41100+: £0.39 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-05-10-G-D-450   3D CAD
Standard delivery
3 - 5 working days * 		1+: £0.9950+: £0.97100+: £0.92 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-05-10-G-D-590   3D CAD
2x5 positions 		Standard delivery
3 - 5 working days * 		1+: £0.9950+: £0.97100+: £0.92 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-05-10-G-D-710   3D CAD
2x5 positions 		Standard delivery
3 - 5 working days * 		1+: £0.9950+: £0.97100+: £0.92 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-05-10-L-D-235   3D CAD
2x5 positions 		Standard delivery
3 - 5 working days * 		1+: £0.8250+: £0.80100+: £0.76 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-05-10-T-S-200   3D CAD
1x5 positions 		Standard delivery
3 - 5 working days * 		1+: £0.2750+: £0.27100+: £0.25 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-07-10-G-D-430   3D CAD
2x7 positions 		Standard delivery
3 - 5 working days * 		1+: £1.3950+: £1.36100+: £1.28 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-07-10-L-D-415   3D CAD
2x7 positions 		Standard delivery
3 - 5 working days * 		1+: £1.1550+: £1.12100+: £1.06 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-07-10-S-D-295   3D CAD
2x7 positions 		Standard delivery
3 - 5 working days * 		1+: £1.8450+: £1.79100+: £1.69 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-07-10-T-S-200   3D CAD
1x7 positions 		Standard delivery
3 - 5 working days * 		1+: £0.3850+: £0.37100+: £0.35 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-08-10-F-S-452   3D CAD
1x8 positions 		Standard delivery
3 - 5 working days * 		1+: £0.5750+: £0.56100+: £0.53 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-08-10-G-D-480   3D CAD
2x8 positions 		Standard delivery
3 - 5 working days * 		1+: £1.6050+: £1.56100+: £1.47 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-09-10-F-D-500   3D CAD
2x9 positions 		Standard delivery
3 - 5 working days * 		1+: £1.2750+: £1.23100+: £1.17 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-10-10-F-D-393   3D CAD
2x10 positions 		Standard delivery
3 - 5 working days * 		1+: £1.4250+: £1.38100+: £1.31 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-12-10-L-D-413   3D CAD
2x12 positions 		Standard delivery
3 - 5 working days * 		1+: £1.9850+: £1.92100+: £1.82 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-17-10-G-D-460   3D CAD
2x17 positions 		Standard delivery
3 - 5 working days * 		1+: £3.3925+: £3.3050+: £3.13 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-21-10-G-D-472   3D CAD
2x21 position 		Standard delivery
2 - 4 working days * 		1+: £4.1925+: £4.0850+: £3.86 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-36-10-T-S-600   3D CAD
1x36 positions 		Standard delivery
3 - 5 working days * 		1+: £1.9550+: £1.90100+: £1.80 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
DW-50-10-T-S-600   3D CAD
1x50 positions 		Standard delivery
2 - 4 working days * 		1+: £2.1750+: £2.11100+: £2.00 View all prices
When ordering more than in stock, please contact us to confirm delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock, please contact us to confirm delivery time

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification
  • More Info

Insulator Material: DW, EW, ZW: Black Glass Filled Polyester HW: Natural Liquid Crystal Polymer

Terminal Material: Phosphor Bronze

Plating: Au or Sn over 50µ" (1.27µm) Ni

Operating Temp Range: -55 °C to +125 °C with Gold -55 °C to +105 °C with Tin

RoHS Compliant: Yes

Lead–Free Solderable: DW, EW, ZW: No, Lead Wave Only HW: Yes

Toby can cut-to-size your requirement from 2 pins to 48 pins per row, turning a zero stock into next day delivery Contact Toby now to cut your FAST STOCK requirement.

Samtec elevated board stacking applications with 0.635mm square post contacts. Flex Stack design allows modified post height and body position in 0.13 mm increments.
