| Part No. | Stock Qty | Price Breaks | Qty | ||||
|---|---|---|---|---|---|---|---|
|

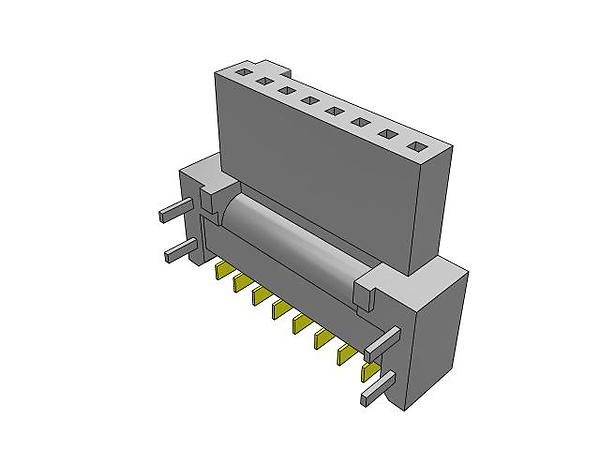

SFM-106-02-L-SH-TR
3D CAD
MOQ 125 |
Standard delivery 5 - 7 working days * |
1+: £2.93 | 25+: £2.84 | 50+: £2.69 | View all prices | ||
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Extended Life Product™ (E.L.P.™)
Ruggedised features: • Passes 10 Year MFG • Locking option • Locking clip option • Screw Down option
Insulator Material: Black Liquid Crystal Polymer
Plating: Au or Sn over 50µ" (1.27µm) Ni
Current Rating (SFM/TFM): 3.2 A per pin (1 pin powered per row)
Voltage Rating: 250 VAC mated with TFM
Operating Temp Range: -55°C to +125°C
Contact Resistance: 15 mΩ
Insertion Depth: (3.05 mm) .120" to (4.06 mm) .160"
Wiping Distance: (0.38 mm) .015"
Normal Force: Standard= 132 g (1.29 N) avg.; LIF= 90 g (0.88 N) avg.
Insertion Force (SFM): (Single contact only) Standard= 2.5 oz (0.69 N) avg.; LITE= 2.0 oz (0.56 N) avg.; LIF= 1.4 oz (0.39 N) avg.
Withdrawal Force (SFM): (Single contact only) Standard= 2.0 oz (0.56 N) avg.; LITE= 1.5 oz (0.42 N) avg.; LIF= 1.0 oz (0.28 N) avg.
Max Cycles: 10,000 with 30µ" (0.76 µm) Au (Use Samtec E.L.P.™ plating option)
RoHS Compliant
Lead-Free Solderable
