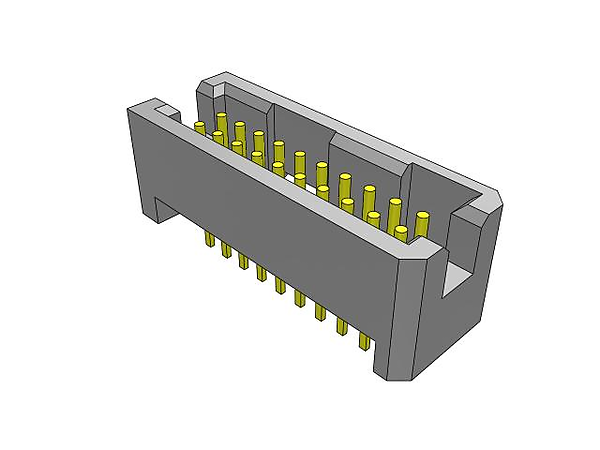

TFML - 1.27 mm Tiger Eyeâ„¢ High-Reliability Locking Terminal Strip / Header

TFML - Samtec 1.27mm Tiger Eye High-Reliability Locking Terminal Strip / Header (TFML)

From: £0.57
  • Locking 1.27mm x 1.27mm micro pitch dual row socket
  • Surface mount or through-hole PCB mounting
  • Vertical and right angle options
  • Choice of eight body heights, shrouded body for blind mating
  • Mates with PCB mount (SFM Series) and cable mount (SFSD series) sockets
  • Pick and place and tape and reel packaging options
Part No. Stock Qty 1+ 100+ 500+ 1000+ Qty
TFML-105-01-L-D  3D CAD
Standard delivery
4 - 6 working days *
£0.79£0.77£0.66£0.57
TFML-105-01-L-D-LC  3D CAD
Standard delivery
15 - 17 working days *
£0.91£0.89£0.78£0.69
TFML-105-01-L-D-RA  3D CAD
2x5 Positions Right Angle
Standard delivery
4 - 6 working days *
£0.88£0.86£0.72£0.64
TFML-105-02-L-D-A-P-TR  3D CAD
MOQ 125
Standard delivery
4 - 6 working days *
£1.04£1.04£0.92£0.81
TFML-105-02-L-D-LC  3D CAD
2x5 Positions Surface Mount
Standard delivery
4 - 6 working days *
£0.99£0.97£0.85£0.75
TFML-107-01-S-D-RA  3D CAD
Standard delivery
4 - 6 working days *
£1.53£1.51£1.27£1.10
TFML-107-02-L-D-A  3D CAD
Standard delivery
4 - 6 working days *
£1.24£1.22£1.03£0.89
TFML-107-02-L-D-LC  3D CAD
2x7 Positions Surface Mount
Standard delivery
4 - 6 working days *
£1.35£1.33£1.15£1.00
TFML-107-02-S-D  3D CAD
2x7 Positions Surface Mount
Standard delivery
4 - 6 working days *
£1.53£1.51£1.28£1.10
TFML-107-02-S-D-P-TR  3D CAD
2x7 Positions Surface Mount
Standard delivery
4 - 6 working days *
£1.70£1.70£1.46£1.27
TFML-110-01-L-D-RA  3D CAD
Standard delivery
4 - 6 working days *
£1.78£1.76£1.48£1.27
TFML-110-01-S-D  3D CAD
Standard delivery
4 - 6 working days *
£1.98£1.96£1.66£1.43
TFML-110-01-S-D-RA  3D CAD
2x10 Positions - MOQ 125
Standard delivery
4 - 6 working days *
£2.19£2.17£1.825£1.57
TFML-110-02-L-D-A  3D CAD
2x10 Positions Surface Mount
Standard delivery
4 - 6 working days *
£1.78£1.76£1.485£1.27
TFML-110-02-L-D-A-K  3D CAD
2x10 Positions Surface Mount
Standard delivery
4 - 6 working days *
£1.85£1.83£1.55£1.35
TFML-110-02-L-D-LC  3D CAD
2x10 Positions Surface Mount
Standard delivery
4 - 6 working days *
£1.88£1.86£1.59£1.38
TFML-110-02-S-D  3D CAD
2x10 Positions Surface Mount
Standard delivery
4 - 6 working days *
£2.19£2.17£1.81£1.57
TFML-110-02-S-D-A  3D CAD
Standard delivery
4 - 6 working days *
£2.19£2.17£1.82£1.57
TFML-110-02-S-D-A-K-TR  3D CAD
MOQ 125
Standard delivery
4 - 6 working days *
£2.30£2.30£1.94£1.69
TFML-110-02-S-D-A-P-TR  3D CAD
MOQ 125
Standard delivery
4 - 6 working days *
£2.36£2.36£2.00£1.75
TFML-110-02-S-D-LC  3D CAD
Standard delivery
4 - 6 working days *
£2.30£2.28£1.93£1.68
TFML-110-02-S-D-P-TR  3D CAD
MOQ 125
Standard delivery
4 - 6 working days *
£2.36£2.36£2.00£1.75
TFML-112-02-L-D-LC  3D CAD
2x12 Pos. SMT - MOQ 500
Standard delivery
4 - 6 working days *
£1.895£1.895£1.895£1.895
TFML-115-01-L-D  3D CAD
2x15 Positions Through Hole
Standard delivery
4 - 6 working days *
£2.05£2.03£1.71£1.47
TFML-115-01-S-D  3D CAD
2x15 Positions Through Hole
Standard delivery
4 - 6 working days *
£2.53£2.51£2.10£1.81
TFML-115-01-S-D-LC  3D CAD
Standard delivery
4 - 6 working days *
Contact UsContact UsContact UsContact Us
TFML-115-01-S-D-RA  3D CAD
2x15 Positions Right Angle
Standard delivery
4 - 6 working days *
£2.79£2.77£2.31£2.00
TFML-115-02-L-D-A  3D CAD
Standard delivery
4 - 6 working days *
£2.26£2.24£1.88£1.61
TFML-115-02-L-D-LC  3D CAD
2x15 Positions Surface Mount
Standard delivery
4 - 6 working days *
£2.37£2.35£1.99£1.73
TFML-115-02-S-D-A-K-TR  3D CAD
MOQ 125
Standard delivery
4 - 6 working days *
£2.89£2.89£2.43£2.11
TFML-115-02-S-D-LC  3D CAD
2x15 Positions Surface Mount
Standard delivery
4 - 6 working days *
£2.90£2.88£2.42£2.10
TFML-115-02-SM-D-A  3D CAD
2x15 Positions Surface Mount
Standard delivery
4 - 6 working days *
£2.79£2.77£2.32£2.00
TFML-120-01-L-D-RA  3D CAD
Standard delivery
4 - 6 working days *
£3.02£3.00£2.51£2.15
TFML-120-01-S-D-RA  3D CAD
Standard delivery
4 - 6 working days *
£3.73£3.71£3.09£2.66
TFML-120-02-S-D-A  3D CAD
2x20 Positions Surface Mount
Standard delivery
4 - 6 working days *
£3.73£3.71£3.08£2.66
TFML-120-02-S-D-A-P-TR  3D CAD
MOQ 125
Standard delivery
4 - 6 working days *
£3.89£3.89£3.27£2.84
TFML-120-02-S-D-LC  3D CAD
Standard delivery
4 - 6 working days *
£3.84£3.82£3.20£2.77
TFML-125-01-L-D-RA  3D CAD
Standard delivery
4 - 6 working days *
£3.78£3.76£3.13£2.69
TFML-125-01-S-D-RA  3D CAD
Standard delivery
4 - 6 working days *
£4.67£4.65£3.86£3.32
TFML-125-02-L-D-LC  3D CAD
2x25 Positions Surface Mount
Standard delivery
4 - 6 working days *
£3.89£3.87£3.24£2.81
TFML-125-02-S-D-A  3D CAD
2x25 Positions Surface Mount
Standard delivery
4 - 6 working days *
£4.67£4.65£3.86£3.32
TFML-130-01-L-D-RA  3D CAD
Standard delivery
4 - 6 working days *
£4.54£4.52£3.76£3.23
TFML-130-01-S-D-K  3D CAD
2x30 Positions Through Hole
Standard delivery
4 - 6 working days *
£5.16£5.14£4.28£3.70
TFML-130-01-S-D-LC  3D CAD
2x30 Positions Through Hole
Standard delivery
4 - 6 working days *
£5.20£5.18£4.32£3.73
TFML-130-02-F-D-A-P-TR  3D CAD
2x30 Positions - MOQ 125
Standard delivery
4 - 6 working days *
£3.84£3.84£3.23£2.80
TFML-130-02-S-D-A  3D CAD
2x30 Positions Surface Mount
Standard delivery
4 - 6 working days *
£5.60£5.58£4.64£3.99
TFML-130-02-S-D-A-P-TR  3D CAD
2x30 Positions - MOQ 125
Standard delivery
4 - 6 working days *
£5.67£5.67£4.81£4.16
TFML-130-02-S-D-LC  3D CAD
2x30 Positions Surface Mount
Standard delivery
4 - 6 working days *
£5.71£5.69£4.75£4.10
TFML-130-02-S-D-LCK-TR  3D CAD
2x30 Positions - MOQ 125
Standard delivery
4 - 6 working days *
£5.82£5.82£4.87£4.22
TFML-140-01-S-D-LC  3D CAD
2x40 Positions Through Hole
Standard delivery
4 - 6 working days *
£6.28£6.26£5.22£4.50
TFML-140-01-S-D-RA  3D CAD
2x40 Positions Surface Mount
Standard delivery
4 - 6 working days *
£6.79£6.77£5.62£4.84
TFML-140-02-S-D  3D CAD
2x10 Positions Surface Mount
Standard delivery
4 - 6 working days *
£6.79£6.77£5.62£4.84
TFML-150-02-S-D-A  3D CAD
2x30 Positions Surface Mount
Standard delivery
4 - 6 working days *
£8.50£8.48£7.03£6.04
TMMH-120-01-S-D-RA  3D CAD
Standard delivery
5 - 7 working days *
£3.07£3.05£3.03£2.19

* Delivery times are from point of order and subject to material availability.

* When ordering more than in stock standard delivery time applies.

* Need help or more stock/delivery information or volume pricing - Please contact us

  • Technical Specification

Samtec Extended Life Product™ (E.L.P.™)

Ruggedised by Samtec • Passes 10 Year MFG • Locking option • Locking clip option • Weld tab option • Screw Down option

Insulator Material: Black Liquid Crystal Polymer

Terminal Material: Phosphor Bronze

Plating: Au or Sn over 50µ" (1,27µm) Ni

Current Rating (TFM/SFM): 3.2A per pin (1 pin powered per row)

Voltage Rating: 250 VAC mated with SFM

Operating Temp Range: -55°C to +125°C

RoHS Compliant

Lead-Free Solderable
