| Part No. | Stock Qty | 1+ | Qty |
|---|---|---|---|
|
2411 06
USB 2.0 White Insert |
205 in stock | £0.38 |
When ordering more than in stock, please contact us to confirm pricing and delivery time.
There was a problem adding this item to the cart. Please contact us on the above number to order.
|
* Delivery times are from point of order and subject to material availability.
* When ordering more than in stock, please contact us to confirm pricing and delivery time
* Need help or more stock/delivery information or volume pricing - Please contact us
Environmental conditions
Temperature range: -40 °C/+85 °C
Materials
Insulating body: PBT, V-0 according to UL94
Contact spring: CuZn, gold-plated in mating area, tin-plated in solder area
Housing: CuZn/steel, nickel-plated
Mechanical data
Mating cycles: 1500
Insertion force: ≤ 35 N
Withdrawal force: ≥ 10 N
Electrical data (at Tamb 20 °C)
Contact resistance: ≤ 30 mΩ
Rated current: 1.5 A
Rated voltage: 30 V DC
Rated impulse voltage: 500 V AC
This USB 2.0 type B connector is part of Lumberg's Universal serial bus interfaces range which acc. to USB 2.0 and 3.0 specifications provider transmission rates of up to 480 Mbit/s and 5 gbit/s respectively and for digital video interfaces acc. to IEEE 1394 up to 800 Mbit/s, also known as FireWire or i.Link. For signal and low load currents up to 1 A.

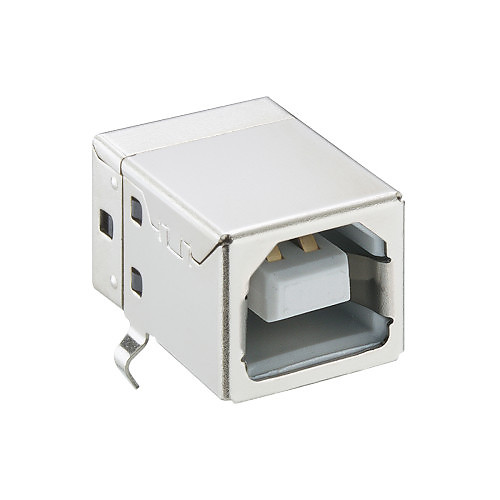

Lumberg 2411 06 USB 2.0 chassis socket type B, angular version, for printed circuit boards
